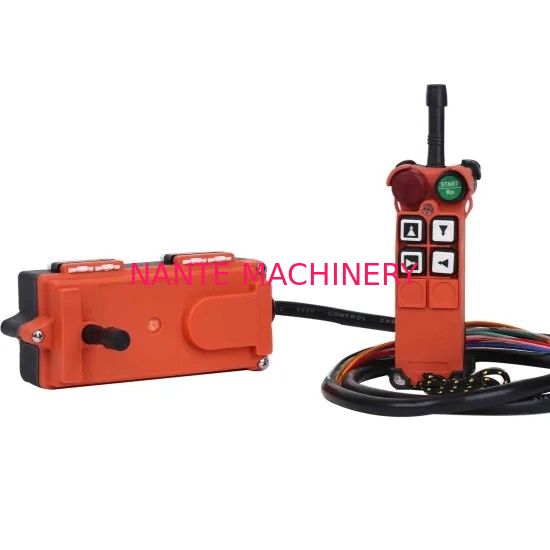

220V Wireless Remote Control Switch , Industrial Wireless Remote Control

220V Wireless Remote Control Switch , Industrial Wireless Remote Control

    • 220V Wireless Remote Control Switch , Industrial Wireless Remote Control
    • 220V Wireless Remote Control Switch , Industrial Wireless Remote Control
  • 220V Wireless Remote Control Switch , Industrial Wireless Remote Control

    Product Details:

    Place of Origin: China
    Brand Name: NANTE
    Certification: ISO
    Model Number: F21-4D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 40usd/set
    Packaging Details: export carton
    Delivery Time: 7 days
    Payment Terms: L/C, T/T
    Supply Ability: 500 Set/Day
    Contact Now
    Detailed Product Description
    Model NO.: F21-4D Enclosure Protection Class: IP 65
    Frequency: 310.00~330MHz Working Temperature: -35 Deg C~ +80 Deg C
    Transmitter Power: DC 6V (4 AA Batteries) HS Code: 85269200
    High Light:

    hoist push button switch

    ,

    bridge crane Control



    F21-4D Industrial Wireless remote control 220v wireless remote control switch


    Product Description

    1. More than 10 years researching and exporting experience in Radio Remote Control industry.

    2. Well and high quality control, all working process according to ISO9001:2008.

    3. CE, FCC & ISO certificates.

    4. One year warranty.

    5. Sample order acceptable.

    6. OEM acceptable.





    Specification:



    Control distance Up to 100m
    Control point 6
    Certificates CE, FCC, ISO
    Unique code Over 4.3billon unique ID codes .
    Working temperature -35°C___+80°C
    Enclosure protection class IP65
    Transmitter power DC3v
    Receiver power AC 380v/ 36v/220V or DC12V/24V
    Output capacity Full sealed relay output with 5 amperes





    Products Application:
    Single hook,Single speed hoist and Hoist crane and for industrial wireless remote control use which under 6 control points etc,


    Brief Introduction
    Transmitter Size:196*65*53mm wight:320g
    Receiver Size:171*86*85mm weight:550g
    Specification:

    control distance: up to 100m
    unique code : over 4.3billon unique ID codes .
    temperature : -35°C-+80°C
    Enclosure protection class : IP65
    Transmitter power: DC3v
    Receiver powder : AC 380v/ 36v/220V or DC12V/24V
    output capacity: full sealed relay output with 5 amperes

    Standard configuration:
    One transmitter ;
    One receiver;
    One 1m cable connect with receiver
    One operation and maintain manual .
    Products Features:

    * Four Dual speed push button and one EMGS button + one SWITCH
    * control point up to 6
    * With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
    * with the Rotate key switch to guarantee the safety.
    * set the internal functions by computer interface
    * four push button can be set mutual inhibition or not .
    * Up ,Down ,East ,West can be set start ,close,speed up,jump strokes,ordinary etc.
