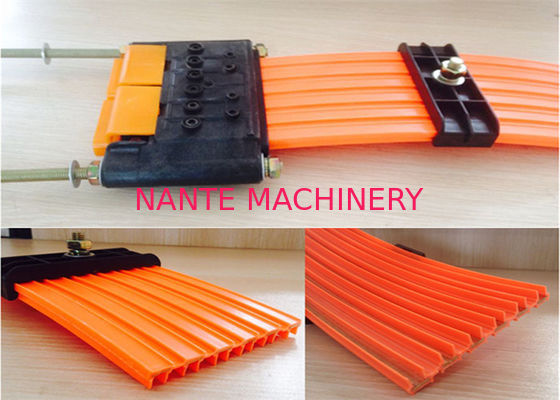

50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

    • 50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar
    • 50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar
    • 50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar
    • 50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar
  • 50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO, CE, CCC
    Model Number: HTR

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Packaging Details: carton or wooden case
    Delivery Time: within 10days
    Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
    Supply Ability: 10000000 Meter/Meters per Year
    Contact Now
    Detailed Product Description
    Common Housing:: -30oC Up To +60oC BAYBLEND Housing:: -20oC Up To +115oC
    Flexible Strength:: 75N/mm2±10% Rated Voltage:: 600V
    Current:: 50~140A Length:: In Reel
    High Light:

    conductor rail system

    ,

    crane conductor bar

    Light Weight Seamless Conductor Bar , 50A-140A High Tro Reel

    50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar 0

    50A-140A High Tro Reel System , Light Weight Seamless Conductor Bar 1



    Quick Details



    • Rated value: 4P, 600V, 50~140A.

    • Conductor material:  Copper.

    • Insulated  sleeve  material: UPVC(heat resistance: 75℃).



    PVC Seamless Conductor System, Flexible Monorail Feeding System, Seamless Power Rail, Multipole Leads Conductor System, High Tro Reel



    Mechanical properties:



    Flexible strength:75N/mm2±10%

    Tensile strength:40N/mm2±10%

    Temperature range:

    Common Housing:  -30oC up to +60oC

    BAYBLEND Housing:  -20oC up to +115oC

    Combustibility:

    Flame retardant

    Self extinguishing:class B 1-no flaming paricles,self-extinguishing.

    Resistance to chemicals:+45oC

    Gasoline:Sulphuric acid 50%

    Mineral Oil:Caustic soda 25% & 50%

    Grease:Hydro-chloric acid,concentrated.



    Application



    1. Small power line feeding system.
    2. Overhead and elongated tracks for cranes.
    3. Electric hoists, electric tools, stacking systems.
    4. Electric tools
    5. Other applications for supplying power to moving power load.



    Technical Parameters



    Type

    Poles

    Conductor Cross Section(mm²)

    Max. Current(A)

    Order-NO.

    HTR1004

    4

    3×10+1×0.9

    50A

    761004

    HTR1504

    4

    3×15+1×1.0

    80A

    761504

    HTR2004

    4

    3×20+1×1.0

    100A

    762004

    HTR2504

    4

    3×25+1×1.2

    120A

    725004

    HTR3504

    4

    3×35+1×1.5

    140A

    763504

    HTR1003

    3

    3×10

    50A

    761003

    HTR1503

    3

    3×15

    80A

    761503

    HTR2003

    3

    3×20

    100A

    762003

    HTR2503

    3

    3×25

    120A

    725003

    HTR3503

    3

    3×35

    140A

    763503
