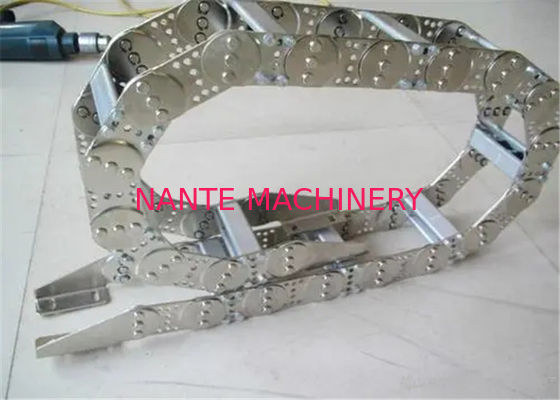

Cable Drag Chain Hose Carrier Cable Energy Chain Moving Cable Protection

Cable Drag Chain Hose Carrier Cable Energy Chain Moving Cable Protection

specifications

TL45, TL65, TL95, TL125, TL180, TL225, TL250, the width of the drag chain can be customized according to user requirements, bending radius from 50-800.

There are three forms of support plate.

(1) when the towing chain needs to bear large pipe and cable load, high strength support plate -- whole block type should be selected

(2) when the size of the pipe joint of the cable is larger than the bore diameter of the inner cavity of the support plate or frequent disassembly and maintenance are required.Optional support plate - separate

(3) support plate -- frame type can be selected when there are many specifications of installed pipe cables

Design parameters

Steel aluminum drag chain material: cold-rolled steel and stainless steel.The type of the towing chain, the total width of the towing chain, the length of the towing chain, the type of the support plate, the size of the hole in the support plate, the bending radius of the towing chain

The characteristics of

Applicable to all transmission modes, can be lengthened and shortened at will.TLG steel towing chain can bear a lot of cable and tubing with large weight, free suspension length is large, support plate can be made according to customer needs, used in working machine, mobile machinery, etc..In addition, the bending radius

can be changed by changing the pin shaft.
