    Product Details:

    Place of Origin: China
    Brand Name: Nante
    Certification: ISO 9001:2008, CE, SGS
    Model Number: TKA Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: 200-500
    Packaging Details: 1. Carton box: 60*60*30cm ,80*80*30cm 2. PLY-Wooden case: per size 3. Pallet: PLY-Wooden pallet or Metal pallet
    Delivery Time: 20 days
    Payment Terms: L/C, T/T
    Supply Ability: 10000pcs per year
    Contact Now
    Detailed Product Description
    Brand Name: NANTE Material: Nylon
    Inside Height: 38,48,58 Mm Original: China
    High Light:

    overhead crane electrical components

    ,

    overhead crane spare parts

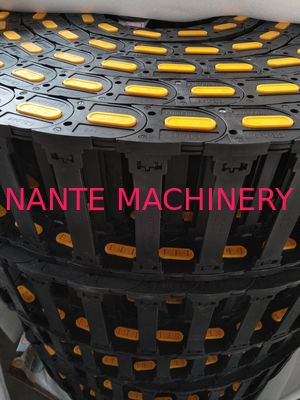

    Mechanical and Electricial Energy Chain Design for Crane Festoon System

    Feature:
    1. The material is reinforced nylon which is more strong and long service life.
    2. The chain is special design for twisting-resistant and stretching- resistant.
    3. Special wheeled chain design for suspension, long horizontal movement.
    a) The travel length can reach up to 400-600m
    b) The noise can reduce 30%, the bearing capacity can increase 20%, and
    service life can be two times more than common energy chain.
    4. The energy chain tray is special for crane festoon system.
    a) Galvanized steel material is Anti-corrosion.
    b) Two layer special design which can put the no-mobile cable in the bottom layer.
    c) High and low position design can let the power feed be in the middle.


    Goods Description:
    1. This product has high mechanical strength, good wear resistance and strong impact resistance.
    2. It is not easy to be deformed and aged under the conditions of indoor and outdoor temperature -40°C~+110°C. 3. It has stable performance and long service life. Various types of CNC machine tools, industrial automation equipment, engineering plastics machinery, power automation assembly lines and other mechanical and electrical industries.
    4. It is suitable for use in reciprocating motion, and can play a role in traction and protection of built-in cables, oil pipes, air pipes, water pipes, etc.
    5. Each section of the towline can be opened for easy installation and maintenance. Low noise, wear resistance and high speed movement during exercise.
    6. Material: Reinforced Nylon, with high pressure and tensile load, good toughness, high elasticity and wear resistance. High and low temperature Bt performance is stable and can be used outdoors.


    Advantage:
    1. Good tensile strength, toughness
    2. Good liquids and lubricants resistance
    3. Good flame resistance
    4. Anti-corrosion, rub-resistance
    5. High load resistant
    6. Easily to assemble and install




    1) towline shape tank chain, composed of a large number of unit links, links freely rotate between.
    (2) The same series of towline within the high, outer high, the same pitch, towline wide, bending radius R may have different options.
    (3) The unit link is composed of left and right link plates and upper and lower cover plates. Each section of the towline chain can be opened and disassembled and disassembled conveniently without threading. After opening the cover plate, cables, tubing, trachea and water pipes can be put into the towline .
    (4) Another separator can be provided to separate the space within the chain as needed.




    CE Mechanical And Electricial Energy Chain System Design For Crane Festoon System 0
    CE Mechanical And Electricial Energy Chain System Design For Crane Festoon System 1


    Model No.Inside Width (mm)B1Inside Height(mm)Outside Width(mm)BOutside Height(mm)Curve radius(mm)
     60 91
     75 106
     80 111 75
     90 121 100
    TKA381003813161125
     120 151 150
     125 156 175
     150 181 200
     175 206 250
     200 231

    (1) The fuel tank chain in the shape of a towline is composed of a large number of unit links, and the links can be freely rotated.
    (2) The same series of towline height, outer height, same pitch, drag chain width, bending radius R can have different choices.
    (3) The unit connecting rod is composed of left and right link plates and upper and lower cover plates. Each part of the chain can be easily opened and removed and removed without threading. Cables, pipes, air pipes and water pipes can be placed in the chain after the cover is opened.
    (4) Another separator can be provided to separate the space within the chain as needed.
