Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists

Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists

    • Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists
    • Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists
  • Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANE
    Certification: CE
    Model Number: Limited Switch

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: CARTON
    Delivery Time: 1-2 weeks
    Contact Now
    Detailed Product Description
    Rated Voltage: Max. 690V Rated Current: 16A
    Protection Class: IP65 Life: 5 Million (times)
    Material: Galvanized Steel Temperature: -25~+70℃
    High Light:

    Industrial Electric Hoist

    ,

    heavy duty rope hoist

    Application:

    Position (rotation angle) limited switch is mainly used in the following control occasions:

    - Complex crane system: operating system for controlling power supply (eg PLC), allowing crane to slow down and stop running

    - Lift (hoist): Used to stop the motor when it is run to its extreme position

    All combinations are used with standard systems

    Can be customized according to customer requirements



    Working principle:

    For example, the FCR006 limit switch is used to control the distance of the workbench on the crane, usually in the following order: When the crane moves forward to the limit distance, the ECR006 is activated to cause the motor speed to drop until the operation is completely stopped and the conversion Commutation circuit. The motor will move in the opposite direction (rear).

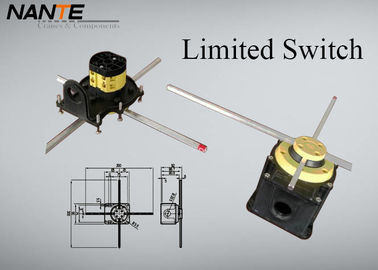

    Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists 0

    Description:

    Rotary control switch with 300mm push rod with 3 to 5 valves, control switch with 12 or 200 revolutions per minute with 4 or 6 micro switches. It can be divided into positive and negative 90 degree rotation and positive and negative 180 degree rotation. Switch contacts using AgCdo material, contact capacity, the use of hand long. Structural parts for PA6 engineering plastics flame retardant materials. It is applicable to cranes, driving, mining machinery, cranes and other fields.

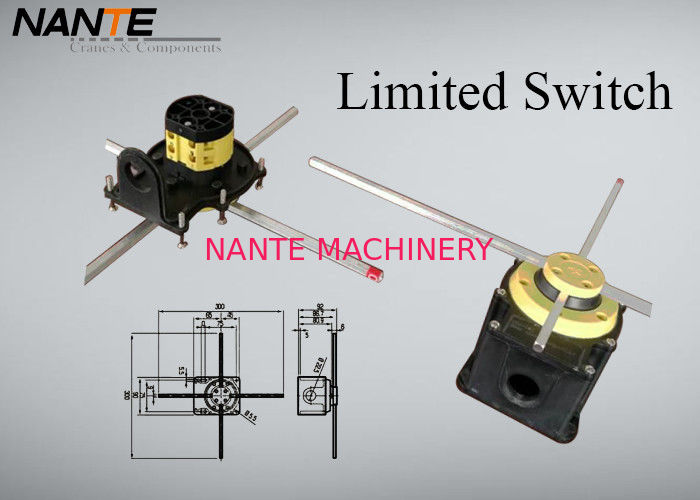

    Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists 1Yellow Position ( Rotation Angle ) Limited Switch For Complex Cranes And Lifting Hoists 2



    Characteristic:
    Rated voltage Max. 690V
    Rated current 16A
    Protection class IP65
    Temperature range -25 ~ +70 (℃)
    Life 5 million (times)



    Technical indicators
    Safety standard Product IEC 947-5-1, EN 60 947-5-1, VDE 0660-200, UL 508, CSA C22-2
    Machine IEC 204-1, EN 60 204-1, NF C 79-130
    Ambient air temperature Work: -25~70℃ Save:-40~70℃
    Resistant to vibration 9 gn (10E 500Hz)
    Impact resistance 68 gn
    Protection against electric shock Type Ⅰ IEC 536 and NF C 20-030
    Degree of protection IP54
    Threaded hole 1/2NPT, M20x1.5, PG13.5
    Rated operating voltage / current

    AC-15: A600 (Ue=240V, Ie=3A)

    DC-13: Q300 (Ue=250V, Ie=0.27A)

    Rated insulation voltage Ui=600V
    Rated impulse withstand voltage Uimp=6kV
    Forced open function Normally closed contact with forced leave function meets IEC 947-5-1 Section 3, en 60 947-5-1
    Contact resistance value ≤25mΩ
    Short circuit protection 10A fuse, type gG (gl)
    Wiring

    Screw clamping terminal,

    wire size: Max.1x0.5mm2, Min.2x2.5mm2

    Electrical durability

    Use category: AC-15 and DC-13

    Maximum operating frequency: 3600r/h

    Load factor: 0.5
