    Product Details:

    Place of Origin: China
    Brand Name: NANTE
    Certification: ISO
    Model Number: fish plate

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pc
    Price: 3-40usd/pc
    Packaging Details: nude
    Delivery Time: 30 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 10000000 Pieces Per Year
    Contact Now
    Detailed Product Description
    Standard: Uic, Arema, ASTM, BS, Tb Material: Carbon Steel
    Transport Package: On Pallets Or Seaworthy Packing Specification: 4, 6holes

    Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

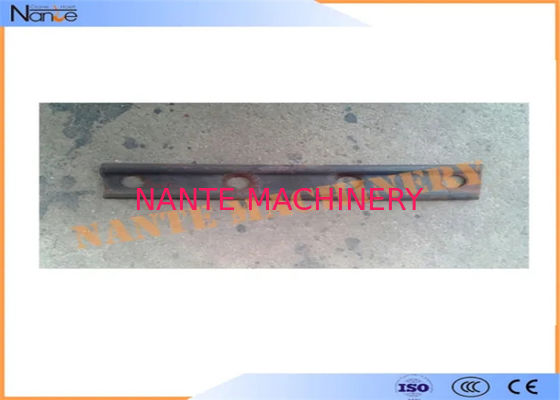

    Crane rail Accessories - Fish Plate for P rail / QU rail

    Crane rails are designed for carrying heavy loads and are used in a wide variety of applications. There are seven normal crane rail models called P18, P24, P38, P43, QU70, QU80, QU100 in China. Rail weight ranges from 18kg to 88kg per meter. You can find a weight and measure conversion table on to us if you need.

    Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

    Each rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.







    Type C B A D Weight (kg/m) Standard
    P18 40 80 90 10 18.06 YB222-63
    P24 51 92 107 10.9 24.46 YB222-63
    P22 50.8 93.66 93.66 10.72 22.3 GB11264-89
    P30 60.33 107.95 107.95 12.3 30.1 GB11264-89
    P38 68 114 134 13 38.72 GB183-63
    P43 70 114 140 14.5 44.65 GB183-63
    P50 70 132 152 15.5 51.51 GB 183-63
    QU70 70 120 120 28 52.8 GB3426-82
    QU80 80 130 130 32 63.69 GB3426-82
    QU100 100 150 150 38 88.96 GB3426-82
    QU120 120 170 170 44 118.1 GB3426-82






    Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

    Steel Standard Rail Fish Plate Mobile Crane Components For Crane Rail Running

    Model S
    (mm)
    S1
    (mm)
    S2
    (mm)
    S3
    (mm)
    S4
    (mm)
    S5
    (mm)
    Rail Size
    FP-24 400 29 98 137 98 - P18/ P22/ P24
    FP-30 490 36 128 127 128 - P30
    FP-38 790 65 160 110 120 - P38/ P43
    FP-80 500 52.5 121 138.5 120 43 QU70/ QU80
