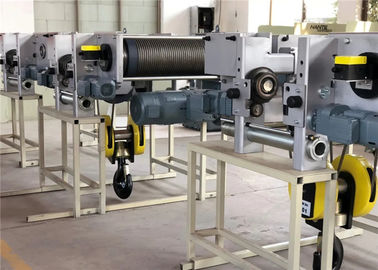

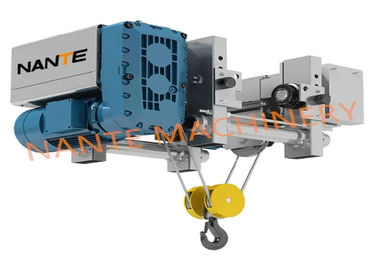

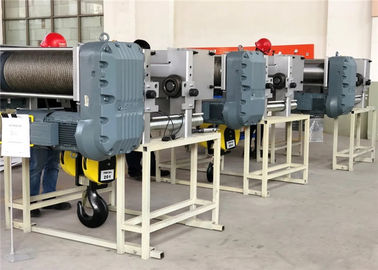

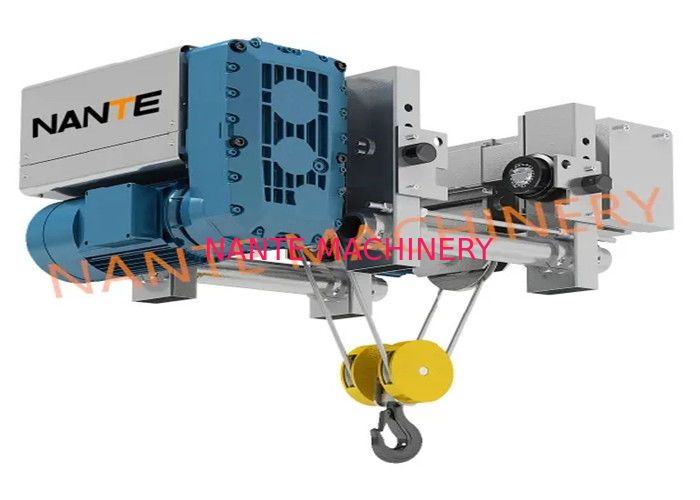

Save Workshop Space Electric Wire Rope Hoist With Trolley More Lifting Height

Save Workshop Space Electric Wire Rope Hoist With Trolley More Lifting Height

    • Save Workshop Space Electric Wire Rope Hoist With Trolley More Lifting Height
    • Save Workshop Space Electric Wire Rope Hoist With Trolley More Lifting Height
    • Save Workshop Space Electric Wire Rope Hoist With Trolley More Lifting Height
  • Save Workshop Space Electric Wire Rope Hoist With Trolley More Lifting Height

    Product Details:

    Place of Origin: China
    Brand Name: NANTE
    Certification: ISO
    Model Number: NHA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 3000-5000usd/set
    Packaging Details: plywood carton
    Delivery Time: 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100000 Sets Per Year
    Contact Now
    Detailed Product Description
    Model NO.: NHA Capacity: 10t
    Lifting Height: 6/9/12/15/18m Travel Power: 0.55kw
    Lifting Speed: 5/0.8m/Min Lifting Power: 9.5/1.5kw

    5t*12m Single Girder Electric Wire Rope Hoist 2M/M5 (Europe type)

    Advantages:
    1. Low headroom design, compact, strong, long service life span, save your space.
    2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
    3. Limit Switch: Cam limit model operate safety.
    4. With load limiter protection.
    5. Remote control avaliable.

    New advantages:
    1. Improved travelling motor: Lower noise, more effciency
    2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope

    Capacity
    (t)
    Lifting Height
    (m)
    Lifting Speed
    (m/min)
    Lifting Power
    (KW)
    Travel Speed
    (m/min)
    Travel Power
    (KW)
    Work Duty - Lifting
    FEM/ISO
    H
    (mm)
    C
    (mm)
    Rail Gauge
    B(mm)
    2 6/9/12/15/18 5/0.8 3.3/0.5 5/20 0.37 3M M6 210 556 150-300
    3.2 6/9/12/15/18 5/0.8 3.3/0.5 5/20 0.37 2M M5 210 556 150-300
    5 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 2M M5 260 596 200-350
    6.3 6/9/12/15/18 5/0.8 6.1/1 5/20 0.37 1Am M4 260 596 200-350
    8 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.55 3M M6 325 750 200-410
    10 6/9/12/15/18 5/0.8 9.5/1.5 5/20 0.55 2M M5 325 750 200-410
    12.5 6/9/12/15/18 5/0.8 12.5/2 5/20 0.55 1Am M4 325 750 200-410
    16 6/9/12/15/18 4/0.6 15/2.5 5/20 0.55×2 2M M5 400 920 300-450
    20 6/9/12/15/18 4/0.6 15/2.5 5/20 0.55×2 1Am M4 400 920 350-400


    1. Reducer
    Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel.
    2. Control Box
    It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
    3. Steel Wire Rope
    It uses GB1102-74(6*37+1) hoist steel wire rope which is durable in use.
    4. Conical Motor
    The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%.
    5. Button Switch
    Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control
    6. Gear
    By adopting Japanese technology, they are innovated symmetrical arrayed high-speed synchronous gears, and are made from international standard gear steel.
    7. Chain
    Adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.
    8. Hook
    Made of high-class alloy steel,it has high strength and high security; by using new design, weight will never escape.
