4 Poles HFP 56 600v Overhead Crane Busbar System Power Rail System

4 Poles HFP 56 600v Overhead Crane Busbar System Power Rail System

    • 4 Poles HFP 56 600v Overhead Crane Busbar System Power Rail System
    • 4 Poles HFP 56 600v Overhead Crane Busbar System Power Rail System
    • 4 Poles HFP 56 600v Overhead Crane Busbar System Power Rail System
  • 4 Poles HFP 56 600v Overhead Crane Busbar System Power Rail System

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: CE
    Model Number: HFP52

    Payment & Shipping Terms:

    Minimum Order Quantity: 50m
    Packaging Details: carton or wooden case
    Delivery Time: within 10days
    Payment Terms: D/P, T/T, L/C, D/A, Western Union
    Supply Ability: 10000000 Meter/Meters per Year
    Contact Now
    Detailed Product Description
    Application:: Electric Tools Pole No.:: 4poles
    Tensile Strength:: 40N/mm2±10% Max. Voltage:: 600v
    Current:: 35A To 240A Support Spacing:: For Straight Runs 1.2m

    Detailed Product Description

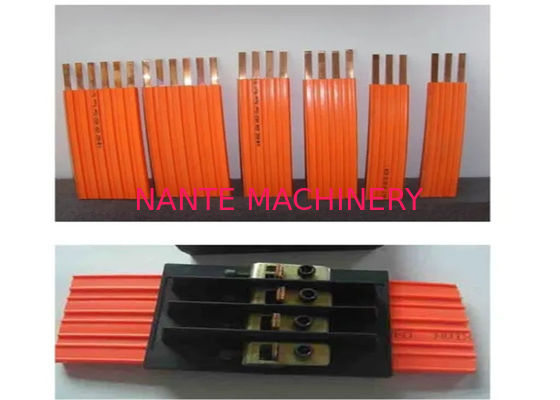

    4 Poles HFP 56 Conductor Rail  Enclosed Conductor System

    Quick Details

    • Standard length; 4m or 6m.

    • Current: 35A~240A

    • Conductor material: copper

    • Support spacing: 1.2m



    Features: compact arrangement, corrosion resistance, easy installation.


    Approved by: CE, CCC,ISO9001



    Conductor Rail, Power Rail System, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS Safety Enclosed Conductor rail.



    Detailed Product Description





    Application





    The ranges of applications of HFP Power Rail Enclosed Conductor Bar System

    1. Overhead and elongated tracks for cranes.
    2. Electric hoists, electric tools, stacking systems.
    3. Electric tools
    4. Other applications for supplying power to moving power load.





    Technical Parameters



    Model

    Pole No.

    Cross section

    Max. current

    Leakage-distance

    Max. voltage

    Resistance

    Dimensions (H * W)

    Weight

    HFP56-4-8/35

    4

    8

    35

    35

    600

    1.944

    73*56

    2.09

    HFP56-4-10/50

    4

    10

    50

    35

    600

    1.656

    73*56

    2.16

    HFP56-4-12/65

    4

    12

    65

    35

    600

    1.321

    73*56

    2.23

    HFP56-4-15/80

    4

    15

    80

    35

    600

    1.137

    73*56

    2.3

    HFP56-4-20/100

    4

    20

    100

    33

    600

    1.011

    73*56

    2.43

    HFP56-4-25/120

    4

    25

    120

    33

    600

    0.713

    73*56

    2.56

    HFP56-4-35/140

    4

    35

    140

    33

    600

    0.522

    73*56

    2.95

    HFP56-4-50/170

    4

    50

    170

    33

    600

    0.337

    73*56

    3.25

    HFP56-4-70/210

    4

    70

    210

    33

    600

    0.265

    73*56

    3.85

    HFP56-4-80/240

    4

    80

    240

    30

    600

    0.223

    73*56

    4.16

    HFP56-3-10/50

    3

    10

    50

    45

    600

    1.656

    73*56

    1.95

    HFP56-3-15/80

    3

    15

    80

    45

    600

    1.137

    73*56

    2.13

    HFP56-3-20/100

    3

    20

    100

    45

    600

    1.011

    73*56

    2.24

    HFP56-3-25/120

    3

    25

    120

    45

    600

    0.713

    73*56

    2.37

    HFP56-3-35/140

    3

    35

    140

    45

    600

    0.522

    73*56

    2.63

    HFP56-3-50/170

    3

    50

    170

    45

    600

    0.337

    73*56

    3.02



    HFP Series Multiple-Poles Conductor Rail System

    Max. voltage

    600v

    Bending strength

    75N/mm²±10%

    Dielectric strength

    30-40kv/mm

    Tensile strength

    40N/mm²±10%

    Special resistance

    5×1015 Ohm×cm

    Leakage resistance

    CTI600-2,7

    Surface resistance

    1013 Ohm×cm

    Design and Manufacturing Standard

    GB7251.2-2006

    Distance between each suspension bracket (m)

    1.2

    Rail length per piece (m)

    4

    Flame retardant

    Class B1-no flaming particles, self-extinguishing

    Permissible Ambient temperature

    Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation  -40℃- +80℃
