    Product Details:

    Place of Origin: CHINA
    Brand Name: Nante
    Certification: ISO, CE, CCC
    Model Number: F21-E2B

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Seaworthy Packing
    Delivery Time: According to customer's requirements
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 500000 Piece/Pieces per Year
    Contact Now
    Detailed Product Description
    Speed:: Single Shell:: Fiberglass
    Control Distance:: Within 100m Weight:: Approx.295g
    Dimension:: 165 X 75 X 45 Mm Use:: Universal

    F21-E2B, a smart radio controller made by high technology.100% frequency quality inspection on all radio controllers prior to delivery and ensure frequency tolerance within 0.000001%.


    Auto Frequency Selection
    Chooses top grade RF 1C with sophisticated design. It provides great performance on radio channel selectivity.
    Real time frequency changing technology which provides the best operating experience and free from interference.
    No channel changing required when multiple radio controllers are used at the same time.


    Radio Frequency Filtering
    A sophisticated Surface Acoustic Wave (SAW filter blocks unwanted radio signal to ensuresmooth radio link.
    It creates a secure and reliable operation experience even in a complicated industrial working environment


    Reliable Communication
    F21-E2B, a smart radio controller made by high technology.
    100% frequency quality inspection on all radio controllers prior to delivery and ensure frequency tolerance within 0.000001%.
    Handheld 	Bridge Crane Control Radio Frequency Filtering Reliable Communication
    6-Card (Plug and Play)
    E-Card works similar to SIM card in the mobile phone.
    All system data are carried on a small e-Card for easy transfer to a spare system when needed.
    E-Card is interchangeable between transmitter & receiver. It allows spare transmitter or receiver to resume to work without any downtime.


    6-Card Duplicator
    The transmitter also acts as e-Card duplicator for data back-up and transfer, i No need to buying COPIER anymore.


    Receiver

    1

     Dimension: 200x85x60mm

    2

     Weight: 785g-805g (including batteries)

    3

     Receiver Power Supply: 24/48/110/220/380 VAC &   12/24V DC

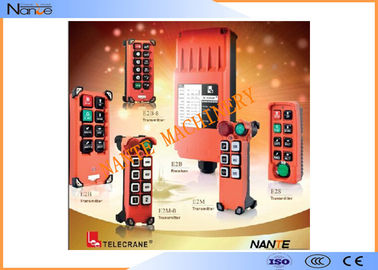

    Dimension

    1

     135 x 55 x 40 mm ( F21-E2S model)

    2

     165 x 75 x 45 mm ( F21-E2Bmodel)

    3

     165 x 50 x 50 mm ( F21-E2M model)

    4

     165 x 75 x 45 mm ( F21-E2B-8model)

    5

     160 x 50 x 50 mm ( F21-E2M-8 model)



    Budget & Environmental Saving
    Transmitter with extremely low battery power consumption.
    All F21-E2B series transmitters use two AA size batteries.(Carbon Zinc,Alkaline,Ni-MH,Ni-Cd are all acceptable)
    You can also select operating range:
    It saves and extends battery life.
    It allows more radio controllers running in a same area.


    Security Enhanced & Anti-Spy
    Transmitter with its powerful processor, it generates SRC (Security Random Code) radio signal with random coding to prevent spy copying.
    By integrating hamming coding and CRC (Cyclic Redundancy Check) technology, it provides accuracy in radio data transmission.
    An unique Non-Repeated security code (ID code), it prevents the error output and improves the operating safety.


    Heavy Duty
    Pushbutton key acts as important role for industrial remote controller.F21-E2B uses a super heavy-duty pushbutton against all severe conditions.


    FREE Powerful Software Program
    Free software consists millions worldwide users' experience.
    F21-E2B software is the total solution for industrial remote controller.
    The software provides great flexibility to meet most of the applications. It allows reprogramming numbers of parameters such as operation function, emission power, and receiver off time, etc.


    Software features
    The software provides great flexibility to meet most of the applications. It allows reprogramming numbers of parameters such as pushbutton function mode (Normal, Toggle, Magnet ON/OFF), Interlock Start Alarm, Selectable Emission Power, and Receiver Auto -Off Time, etc.
