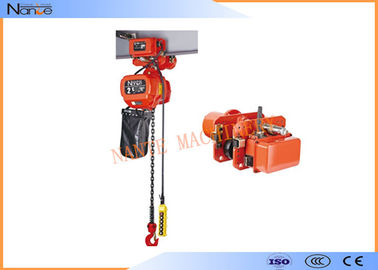

Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals

Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals

    • Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals
    • Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals
    • Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals
  • Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO9001, CE, CCC
    Model Number: Electric Chain Hoist

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Packaging Details: Seaworthy packing
    Delivery Time: Within 14 days
    Payment Terms: L/C, T/T, D/P, T/T, D/A, Western Union, MoneyGram
    Supply Ability: 10000 Set/Sets per Year
    Contact Now
    Detailed Product Description
    Lift Speed:: 1~7.6m/min Power Source:: Electric
    Model Number:: SHHD Usage:: Construction Hoist
    Capacity:: 250kg To 50ton Sling Type:: Chain
    After-sales Service Provided:: Overseas Service Center Available Condition:: New

    We offer a full line of manual hoists, both hand chain and lever tools, which are used primarily for maintenance and construction activities.Our hoists are ideal in manufacturing, power generation, and industrial facilities where heavy items are lifted and positioned as part of production or warehousing.





    Quick Details



    Place of Origin: Zhejiang, China (Mainland)
    Condition: New
    Brand Name: NANTE
    Model Number: SHHD
    Usage: Construction Hoist
    Power Source: Electric
    Sling Type: Chain
    Maximum Lifting Weight: 50t
    Certification: ISO, CE, CCC
    After-sales Service Provided: Overseas service center available
    Capacity: 250kg to 50ton



    Specifications

    Capacity: 250kg to 50ton.
    Chain standard length is 3m, longer length available (3m to 130m).



    Detailed Product Description



     A. General Introduction
    NT series electric chain hoist is featured by high strength shell, graceful appearance, compact structure, small size, and light weight. Dualpinion is adopted for transmission. The helical gear enables steadyand low noise hoisting when rapid running.
    The hoist alloy steel body has a compact structure, Slip ring clutch ensures safety. With the easy  operation,high working duty, light weight, electric chain hoist show its capability in wide industry area  such as  fabrication, production line, mining, automobile, oil&gas, etc.
     Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals

    Hoist shell: light alloy steel shell, light and hard, special designed cooling fin ensure 40% heat dissipation. The structure suitable for chemical plant, electroplate factory.

    Electromagnetic brake device: it can generate magnetic force. When the electricity cut off, it allows
    immediate braking, so to ensure safety operation.

    Limit switch: stop the motor in operation to prevent the safety chain exceeds

    Chain: imported FEC80 ultra heat treated alloy steel chain, can use safely in rain, sea, chemicals. 80
    degree load chain is high wearable and anti corrosive. It can lift to a height 20 feet. Galvanized chain is  optional.

    Hook: hard, 360 degree rotatable, ensure safety operation.

    Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals

    Pendent control: water proof buttons, light weight and durable. Compact design, can single hand  operation.
    The wire has strain to prevent cable damage.

    Geared box: adopts alloy steel spiral and straight spur gear for speed reduction. Gear inspection and lubrication is simple.

    Electric control panel: 24v, 36v and 48v transformer. The device prevents accident caused by electricity leakage, ensuring safety operation in rain. Electromagnetic contactor can be used in high frequency. Anti phase protection device ensure motor not working under wrong wiring.

    Chain bag: with polypropylene or steel material, each chain is lubricated, can choose size according toactual application.

    Trolley: unique side guide rail design ensures steady transmission. Frequency invertor is optional,  suitable for various working condition and environment.

    B. Feature

    1.  Capacity: 250kg to 50ton.
    2.  Magnetic brake allows immediate braking and cut off the power supply.
    3.  Upper and lower limit switch installation is not allowed to exceed the safety chain length.
    4. Anti-phase protection device: when the wiring is wrong, the control circuit will not work.
    5. Japan FEC 80 chain or G80 chain or other imported chain.
    6. Lower hook is 360 degree rotatable, with safety latch.
    7. 24v, 36v transformer, protect hoist and ensure safety when electric leakage occur, especially
    8. when raining.
    9. Water proof push button, light and durable.
    10. IP54/IP55, M4, F class.
    11. Chain standard length is 3m, longer length available (3m to 130m).
    12. All hoist with CE/ISO certificate, user manual and quality inspection certificate.
    13. Lubrication recommendation: castral EPX-90 epxB4W-140.
    14. Single phase 250kg to 1ton available.

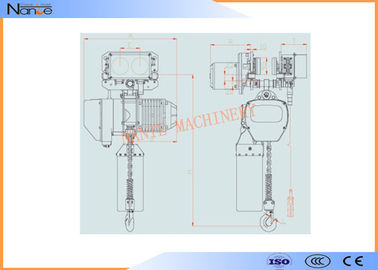

     C. Technical Data



    Single Phase IP54 / IP55 10 Ton Electric Chain Hoist Can Use In Rain Sea Chemicals
