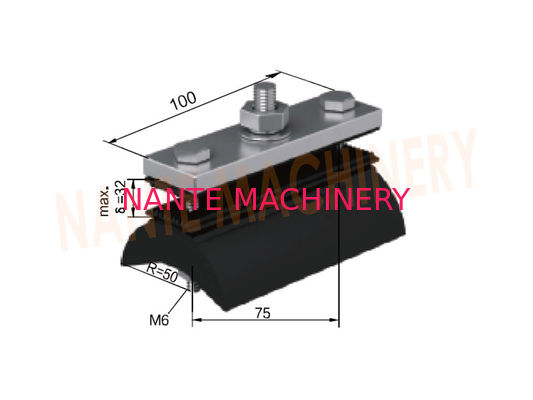

Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System

Certification
Good quality Electric Chain Hoist for sales
Good quality Electric Chain Hoist for sales
I'm Online Chat Now

Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System

China Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System supplier
Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System supplier Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System supplier Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System supplier

Large Image :  Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System

Product Details:

Place of Origin: CHINA
Brand Name: NANTE
Certification: Certification
Model Number: WF-70

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: CARTON
Delivery Time: 1-2 weeks
Supply Ability: 1000000 pcs per year
Contact Now
Detailed Product Description
Wheels: Plastic Max. Travel Speed: 120m/min
Material: ABS Temperature: -30℃~+80℃
Max.cable Load: Max.12 Kg/trolley Weight: 0.24kg

Specifications

1. Crane& Hoist Steel Wire Cable Trolley Festoon System

2. Delivering power& control to mobile equipment

3. Safe, convenient

Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System

Detailed Product Description

Crane& Hoist Steel Wire Cable Trolley Festoon System , Galvanized Steel Conductor Rails With Brass Dowel, Rope and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

Steel wire trolley applied to light load mobile power supply device, easy to install, low cost.

Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method. This festoon system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

Application

Steel Wire systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc, suitable for small cable loads.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation



Technical Parameters

Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System Type WFMT-70
Wheels

Wheels: plastic

Temperature resistance: -30°C to +80°C

Travelling speed: ca. 120 m/min.
Material

Carrier body: plastic

Support saddle: plastic

Bumper: Neoprene

Hardware: galvanized

Dowel: steel, galvanized ABS

Temperature resistance: -30°C to +80°C
Max. cable load max.12KG
Dim. of Cable (mm) max.75 Wx50δ
Weight(kg) 0.2
Type WFMT-70
Firm And Flexible Wire Steel Festoon Accessories For Festoon Cable System Wheels Wheels: plastic Temperature resistance: -30°C to +80°C
Material Travelling speed: ca. 120 m/min.

Carrier body: plastic Support saddle: plastic

Bumper: Neoprene

Hardware: galvanized Dowel: steel, galvanized ABS
Temperature resistance: -30°C to +80°C
Max. cable load max.12KG
Dim. of Cable (mm) max.75 Wx50δ
Weight(kg) 0.4

NANTE supply full line of beam trolley,

  1. For Straight or Curver Beam
  2. For IPN Beam or H Beam or I-Beam
  3. For Normal Working Condition or Corrosivity
  4. For Light or Heavy Duty Working
  5. For One or Two or Three Foor Cables
