| Place of Origin: | CHINA |
| Brand Name: | NANTE |
| Certification: | CE |
| Model Number: | NSP-H19 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | CARTON |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000pcs/year |
| Max.current: | 500A | Standard Housing: | -20°C Up To +70°C |
|---|---|---|---|
| Weight: | 0.035kg, 0.043kg | Conductor Rail: | Copper |
| Material: | Plastic / Polyseter | Temperature: | High |
| High Light: | dsl systems,crane busbar system |
||

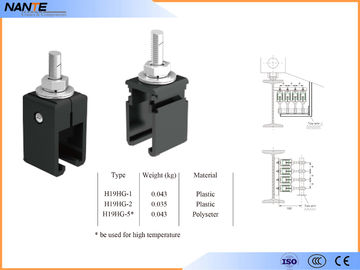

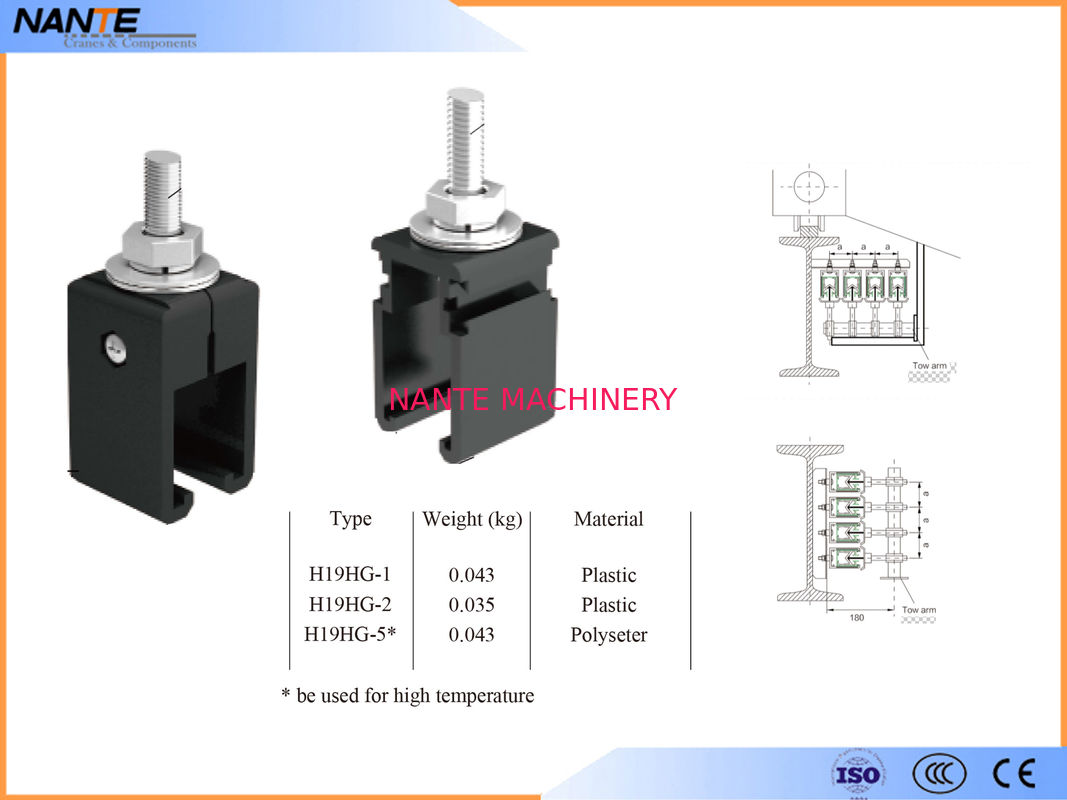

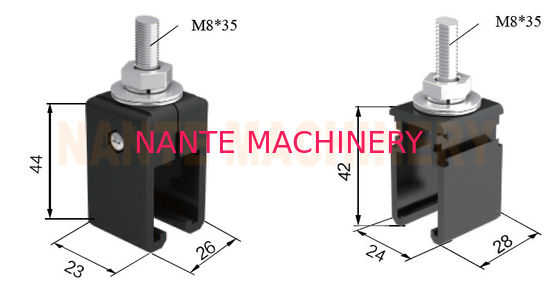

NSP-H19 Accessories Hanger For Black Plastic And Steel Material Under High Temperature
| Type | Weight(kg) | Material |
| H19HG-1 | 0.043 | Plastic |
| H19HG-2 | 0.035 | Plastic |
| H19HG-5* | 0.043 | Polyseter |
Specifications
Factory price hanger of conductor rails.
Standard brackets for powerail attachment to crane girders are available.
Powerail with sliding and fixpoint hangers.
Standard distance between suspension points for indoor and outdoor installations: 1200mm.
Application
The ranges of applications of HFP Power Rail Enclosed Conductor System
1. Overhead and elongated tracks for cranes.
2. Electric hoists, electric tools, stacking systems.
3. Electric tools
4. Other applications for supplying power to moving power load.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features.
Housing
Color green, PVC housing for 4 conductors. Standard section 4 m.
Other sections are available.
The ground conductor is identified by international color code.
Phase reversing prevented by design of the collector and housing.
Current collectors
The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.
Spring loaded carbon brushes maintain uniform contact.
Connecting cables and hinged or flexible towing arms included.
Double Current collectors for transfer applications and higher amperage.
| HFP Series Multiple-Poles Conductor Rail System | |||
| Max. voltage | 600v | Bending strength | 75N/mm²±10% |
| Dielectric strength | 30-40kv/mm | Tensile strength | 40N/mm²±10% |
| Special resistance | 5×1015 Ohm×cm | Leakage resistance | CTI600-2,7 |
| Surface resistance | 1013 Ohm×cm | Design and Manufacturing Standard | GB7251.2-2006 |
| Distance between each suspension bracket (m) | 1.2 | Rail length per piece (m) | 4 |
| Flame retardant | Class B1-no flaming particles, self-extinguishing | ||
| Permissible Ambient temperature | Standard insulation -30°C- +70°C|High temperature insulation -20°C- +115°C|Low temperature insulation -40°C- +80°C | ||
Contact Person: Miss. Lexie. Mao
Tel: 86-15158039997 www.nantecrane.com
Fax: 86-575-85255335
