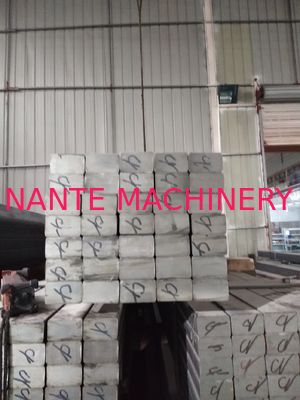

Hot - Rolled Flat Bar Standard Size Steel Crane Rail 60*40 For Overhead Crane

Hot - Rolled Flat Bar Standard Size Steel Crane Rail 60*40 For Overhead Crane

    • Hot - Rolled Flat Bar Standard Size Steel Crane Rail 60*40 For Overhead Crane
    • Hot - Rolled Flat Bar Standard Size Steel Crane Rail 60*40 For Overhead Crane
  • Hot - Rolled Flat Bar Standard Size Steel Crane Rail 60*40 For Overhead Crane

    Product Details:

    Place of Origin: China
    Brand Name: NANTE
    Certification: CE,ISO
    Model Number: Flat bar

    Payment & Shipping Terms:

    Minimum Order Quantity: 1ton
    Packaging Details: naked
    Delivery Time: 2 weeks
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 ton/year
    Contact Now
    Detailed Product Description
    Material: Q345Cr Color: Can Be Painted
    Treatment: Hot Rolled Surface: Smooth
    Length: 5.8mts/pc Type: 60*40
    Weight: 18.84kg/m Original: China
    High Light:

    overhead crane rail

    ,

    welding crane rail

    Crane Rail Hot-rolled Flat Bar Standard Size 60*40 for Overhead Crane



    Introduction

    Square billet is widely used for bridge cranes, gantry cranes, etc.
    it is featured by smooth running effect, easy assemble.

    Crane travelling steel rail tracks are designed for carrying heavy and small loads and are used in a wide variety of applications. There are seven standard crane rail models called P18, P24, P38, P43, QU70, QU80, QU100 in China. Rail weight ranges from 18kg to 88kg per meter. You can find a weight and measure conversion table on to us if you need.

    Each steel rail application is different and must be engineered to maximise efficiency and lifespan, therefore the selection of the correct rail is critical to achieving this end.

    Features:


    1. The material of our billet is Q345B, which is similar to A572, GR 50, please refer to the attached comparison document.
    2. Our billet is very straight and The surface of our billet is very smooth.
    3. We customize radius of the angle to be 3mm, which is most suitable for rail wheel to run.
    4. The both end side of this billet was cut by Sawing machine which is very easy for assemble.



    Material Q345B


    Size : 50*30, 60*40, 70*40, 80*60, 100*60, 120*80

    Advantage:

    1. The material of our billet is Q345B, which is similar to A572, GR 50, please refer to the attached comparison document.
    2. Our billet is very straight and The surface of our billet is very smooth.
    3. We customize radius of the angle to be 3mm, which is most suitable for rail wheel to run.
    4. The both end side of this billet was cut by Sawing machine which is very easy for assemble.


    The both end side of this billet was cut by Sawing machine which is very easy for assemble.We customize radius of the angle to be 3mm, which is most suitable for rail wheel to run.The material of our billet is Q345B, which is similar to A572, GR 50, please refer to the attached comparison document.
    Our billet is very straight and The surface of our billet is very smooth.



    Specification
    Type B A Weight(Kg/m)
    50*30 50 30 11.78
    60*40 60 40 18.84
    70*40 70 40 21.98
    80*60 80 60 37.68
    100*60 100 60 47.11
    120*80 120 80 75.36

    Customized
    40*40 40 40 12.56
    50*50 50 50 19.63
    70*70 70 70 38.47
    80*80 80 80 50.25



    Detailed Product Description of Square Billet for Crane System
    Quick Details
    Type: Other
    Material: Q345B
    Dimensions (L x W x H) (mm):50mm*30mm
    Place of Origin: China (Mainland)
    Size: 50*30, 60*40, 70*40, 80*60, 100*60, 120*80



    Features:
    1. The material of our billet is Q345B, which is similar to A572, GR 50, please refer to the attached comparison document.
    2. Our billet is very straight and The surface of our billet is very smooth.
    3. We customize radius of the angle to be 3mm, which is most suitable for rail wheel to run.
    4. The both end side of this billet was cut by Sawing machine which is very easy for assemble.



    Steel Billet Specifications:



    Type Steel billet / Square steel/ Steel square bar
    Standard grade

    3SP/PS, 5SP/PS, Q195, Q235,

    Q255, Q275, 20MnSi etc.

    MOQ 1000 MT
    Technique Hot rolled, Continuous casting and rolling
    Size 50*30mm ~ 160*160mm
    Length 3~12m
    Packing Loose packing, in bundle
    Payment terms T/T, L/C at sight, Usance L/C
    Trade terms EXW, FOB, CFR, CIF
    Trans terms FIO, FILO, FLT
    Inspection Third party inspection accepted
    Delivery time 15-30 days, according to the quantity
    Applications

    carbon structural steel, wire rod, rod, deformed bars,

    profile steel, machine parts, and steel moulds etc .

    Note

    Customized service is available

    (for sizes,length and chemical components etc.).



    Steel Grade:

    Steel Grade C % Mn % Si % S % P %
    Q195 0.06-0.12 0.25-0.50 0.30 Max 0.04 Max. 0.04 Max.
    Q235 0.12-0.22 0.30-0.60 0.30 Max. 0.04 Max. 0.04 Max.
    Q255 0.18-0.28 0.40-0.70 0.30 Max. 0.045 Max. 0.050 Max.
    Q275 0.27-0.38 0.50-0.80 0.30 Max. 0.045 Max. 0.045 Max.
    3SP 0.14-0.22 0.40-0.85 0.15-0.30 0.050 Max. 0.040 Max.
    5SP 0.28-0.37 0.50-1.00 0.15-0.30 0.050 Max. 0.040 Max.
    20MnSi 0.17-0.25 1.00-1.60 0.40-0.80 0.050 Max. 0.050 Max.



    Features:

    1. The material of our billet is Q345B, which is similar to A572, GR 50, please refer to the attached comparison document.
    2. Our billet is very straight and The surface of our billet is very smooth.
    3. We customize radius of the angle to be 3mm, which is most suitable for rail wheel to run.
    4. The both end side of this billet was cut by Sawing machine which is very easy for assemble.
