    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO9001, CE, CCC
    Model Number: HFP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Packaging Details: Naked, Wooden case or Carton
    Delivery Time: Within 7 days
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 1000000 meters per year
    Contact Now
    Detailed Product Description
    Model Number:: HFP56-3 Housing Material:: PVC
    Color:: Green Or Orange Current Range:: 50A To 170A
    Standard Length:: 4m Max.Voltage:: 660V
    Flame Restardant:: Class B1 No Flaming Particles, Self-extinguishing
    High Light:

    dsl systems

    ,

    crane busbar system

    Detailed Product Description


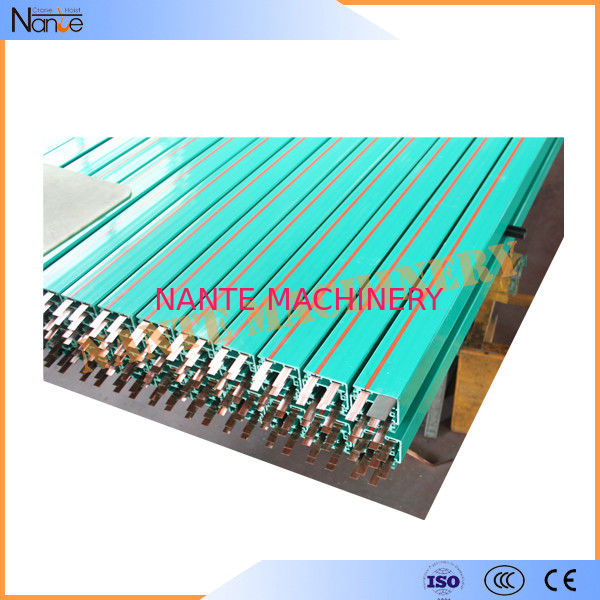

    PVC Enclosed Conductor Rails , Self-Extinguishing Green Boxline

    Quick Details

    • Standard length; 4m or 6m.

    • Current: 35A~240A

    • Conductor material: copper

    • Support spacing: 1.2m



    Detailed Product Description

    Enclosed conductor rails 4 poles box line has been used successfully for many years and have been continuously improved and adapted in line with the latest state-of-the-art products. They are conductor lines in a rigid PVC housing with different copper cross sections for rated currents of 40-200 A. The current collectors, running in ball bearings, are guided by the housing. The mains power is transferred by spring-stored carbon brushes.



    Application

    The ranges of applications of HFP Power Rail Enclosed Conductor System

          1.  EOT cranes

          2.  People Move

          3.  Special purpose equipment



    Design features

    Compact arrangement, corrosion resistance and simple assembly are its essential features.



    Housing

    Color green, PVC housing for 4 conductors. Standard section 4 m.

    Other sections are available.

    The ground conductor is identified by international color code.

    Phase reversing prevented by design of the collector and housing.





    Couplings

    Through PVC joint caps.





    Feed Sets

    Line feeds or end feeds.





    End caps

    The open ends of the powerail are closed by end caps for HFP.





    Hangers

    Standard brackets for powerail attachment to crane girders are available.

    Powerail with sliding and fixpoint hangers.

    Standard distance between suspension points for indoor and outdoor installations:1200mm.





    Current collectors

    The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.

    Spring loaded carbon brushes maintain uniform contact.

    Connecting cables and hinged or flexible towing arms included.

    Double Current collectors for transfer applications and higher amperage.

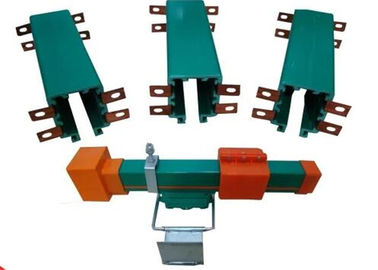

    PVC Enclosed Conductor Rails , Self-Extinguishing Green Boxline             PVC Enclosed Conductor Rails , Self-Extinguishing Green Boxline



    PVC Enclosed Conductor Rails

    HFP56-4 Technical Parameters

    Model Pole No. Cross section Max. current Leakage-distance Max. voltage Resistance Dimensions (H * W) Weight
    HFP56-4-8/35 4 8 35 35 600 1.944 73*56 2.09
    HFP56-4-10/50 4 10 50 35 600 1.656 73*56 2.16
    HFP56-4-12/65 4 12 65 35 600 1.321 73*56 2.23
    HFP56-4-15/80 4 15 80 35 600 1.137 73*56 2.3
    HFP56-4-20/100 4 20 100 33 600 1.011 73*56 2.43
    HFP56-4-25/120 4 25 120 33 600 0.713 73*56 2.56
    HFP56-4-35/140 4 35 140 33 600 0.522 73*56 2.95
    HFP56-4-50/170 4 50 170 33 600 0.337 73*56 3.25
    HFP56-4-70/210 4 70 210 33 600 0.265 73*56 3.85
    HFP56-4-80/240 4 80 240 30 600 0.223 73*56 4.16
    HFP56-3-10/50 3 10 50 45 600 1.656 73*56 1.95
    HFP56-3-15/80 3 15 80 45 600 1.137 73*56 2.13
    HFP56-3-20/100 3 20 100 45 600 1.011 73*56 2.24
    HFP56-3-25/120 3 25 120 45 600 0.713 73*56 2.37
    HFP56-3-35/140 3 35 140 45 600 0.522 73*56 2.63
    HFP56-3-50/170 3 50 170 45 600 0.337 73*56 3.02



    HFP Series Multiple-Poles Conductor Rail System

    Max. voltage

    600v

    Bending strength

    75N/mm²±10%

    Dielectric strength

    30-40kv/mm

    Tensile strength

    40N/mm²±10%

    Special resistance

    5×1015 Ohm×cm

    Leakage resistance

    CTI600-2,7

    Surface resistance

    1013 Ohm×cm

    Design and Manufacturing Standard

    GB7251.2-2006

    Distance between each suspension bracket (m)

    1.2

    Rail length per piece (m)

    4

    Flame retardant

    Class B1-no flaming particles, self-extinguishing

    Permissible Ambient temperature

    Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation  -40℃- +80℃



    PVC Enclosed Conductor Rails , Self-Extinguishing Green Boxline
