PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System

PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System

    • PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System
    • PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System
  • PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: CE
    Model Number: HFP52

    Payment & Shipping Terms:

    Minimum Order Quantity: 50m
    Packaging Details: carton or wooden case
    Delivery Time: within 10days
    Payment Terms: T/T, L/C
    Supply Ability: 10000000 Meter/Meters per Year
    Contact Now
    Detailed Product Description
    Application:: Electric Tools Pole No.:: 4poles
    Tensile Strength:: 40N/mm2±10% Max. Voltage:: 600v
    Current:: 35A To 240A Support Spacing:: For Straight Runs 1.2m
    Brand: Nante Original: China
    High Light:

    dsl systems

    ,

    conductor bar system

    PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System
    Quick Details
    •Standard length; 4m or 6m.
    •Current: 50A~140A
    •Conductor material: copper
    •Single powerline,  easytrack, single flexline, multiline, boxline

    Detailed Product Description
    The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.


    Application
    The ranges of applications of HFP Power Rail Enclosed Conductor System

    1. Overhead and elongated tracks for cranes.
    2. Electric hoists, electric tools, stacking systems.
    3. Electric tools
    4. Other applications for supplying power to moving power load.


    Design features
    Compact arrangement, corrosion resistance and simple assembly are its essential features.

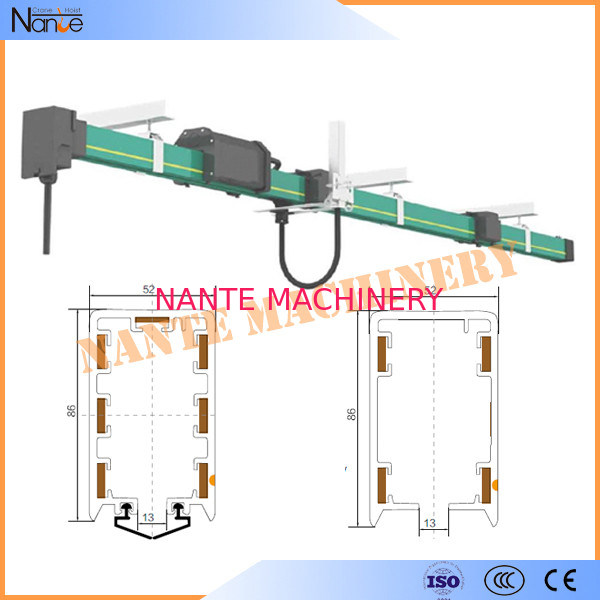

    Housing

    Color green, PVC housing for 4 conductors. Standard section 4 m.
    Other sections are available.
    The ground conductor is identified by international color code.

    Phase reversing prevented by design of the collector and housing.


    PVC Shrouded Conductor Rail
    Technical Parameters



    ModelPole No.Cross sectionMax. currentLeakage-distanceMax. voltageResistanceWeight
    HFP52-4-10/5041050556001.6562.05
    HFP52-5 -10/5051050156001.6562.14
    HFP52-6-10/5061050156001.6562.23
    HFP52-7-10/5071050156001.6562.32
    HFP52-4-15/8041580556001.1372.32
    HFP52-5-15/8051580156001.1372.44
    HFP52-6-15/8061580156001.1372.58
    HFP52-7-15/8071580156001.1372.71
    HFP52-4-20/100420100556001.0112.47
    HFP52-5-20/100520100156001.0112.65
    HFP52-6-20/100620100156001.0112.83
    HFP52-7-20/100720100156001.0112.99
    HFP52-4-25/120425120556000.7132.63
    HFP52-5-25/120525120156000.7132.83
    HFP52-6-25/120625120156000.7133.02
    HFP52-7-25/120725120156000.7133.27
    HFP52-4-35/140435140556000.5222.97
    HFP52-5-35/140535140156000.5223.25
    HFP52-6-35/140635140156000.5223.58
    HFP52-7-35/140735140156000.522

    3.87

     PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System

     PVC Shrouded Conductor Rail Corrosion Resistance For Mobile Electrification System







    Tag : conductor bar system, crane conductor
