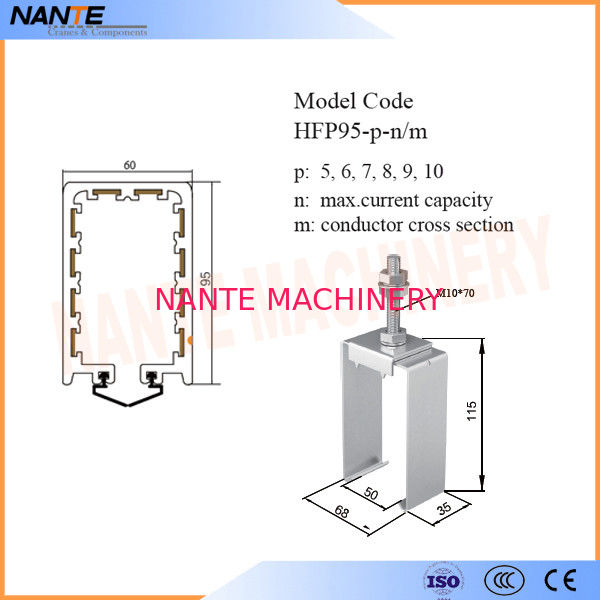

Steel Hanger For HFP95 Series Enclosed Conductor Rail Poles 5,6,7,8,9,10 Max. Voltage 660V

Steel Hanger For HFP95 Series Enclosed Conductor Rail Poles 5,6,7,8,9,10 Max. Voltage 660V

    • Steel Hanger For HFP95 Series Enclosed Conductor Rail Poles 5,6,7,8,9,10 Max. Voltage 660V
    • Steel Hanger For HFP95 Series Enclosed Conductor Rail Poles 5,6,7,8,9,10 Max. Voltage 660V
  • Steel Hanger For HFP95 Series Enclosed Conductor Rail Poles 5,6,7,8,9,10 Max. Voltage 660V

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO9001, CE, CCC
    Model Number: HFP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: Carton
    Delivery Time: 1-2 weeks
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 1000000 pcs per year
    Contact Now
    Detailed Product Description
    Height: 115+mm Width: 35mm
    Length: 68mm Type: 95HG
    Weight: 0.26kg Material: Steel
    High Light:

    dsl systems

    ,

    crane busbar system

    Type Weight(kg) Material
    95HG-1 0.26 Steel
    95HG-2 0.23 Steel



    Specifications

    Advantages: small footprint, flexible combination, small radius of the bend, easy to install



    Application areas: port transportation, paper, water, automobile manufacturing, home appliances, logistics and other industries



    Design features:

    Compact arrangement, corrosion resistance and simple assembly are its essential features.





    Housing

    Color green, PVC housing for 4 conductors. Standard section 4 m.

    Other sections are available.

    The ground conductor is identified by international color code.

    Phase reversing prevented by design of the collector and housing.



    Current collectors

    The current collectors are made of re-inforced polyester fiberglass,for high strength and light weight.

    Spring loaded carbon brushes maintain uniform contact.

    Connecting cables and hinged or flexible towing arms included.

    Double Current collectors for transfer applications and higher amperage.





    Model Pole No. Cross section
    (mm2)
    Max.current
    (A)
    Leakage-distance
    (mm)
    Max.voltage
    (V)
    Resistance
    (Ω)
    Weight
    (kg)
    HFP95-5-10/50 10 10 50 20 660 1.656 3.2
    HFP95-5-15/80 10 15 80 20 660 1.193 3.28
    HFP95-5-20/100 10 20 100 20 660 1.011 3.51
    HFP95-5-10/50 10 10 50 20 660 1.656 3.16
    HFP95-5-15/80 10 15 80 20 660 1.193 3.41
    HFP95-5-20/100 10 20 100 20 660 1.011 3.68
    HFP95-5-10/50 10 10 50 20 660 1.656 3.25
    HFP95-5-15/80 10 15 80 20 660 1.193 3.56
    HFP95-5-20/100 10 20 100 20 660 1.011 3.88
    HFP95-5-10/50 10 10 50 20 660 1.656 3.34
    HFP95-5-15/80 10 15 80 20 660 1.193 3.7
    HFP95-5-20/100 10 20 100 20 660 1.011 4.04
    HFP95-5-10/50 10 10 50 20 660 1.656 3.42
    HFP95-5-15/80 10 15 80 20 660 1.193 3.77
    HFP95-5-20/100 10 20 100 20 660 1.011 4.24
    HFP95-5-10/50 10 10 50 20 660 1.656 3.54
    HFP95-5-15/80 10 15 80 20 660 1.193 3.98
    HFP95-5-20/100 10 20 100 20 660 1.011

    5.21



    HFP Series Multiple-Poles Conductor Rail System
    Max. voltage 600v Bending strength 75N/mm²±10%
    Dielectric strength 30-40kv/mm Tensile strength 40N/mm²±10%
    Special resistance 5×1015 Ohm×cm Leakage resistance CTI600-2,7
    Surface resistance 1013 Ohm×cm Design and Manufacturing Standard GB7251.2-2006
    Distance between each suspension bracket (m) 1.2 Rail length per piece (m) 4
    Flame retardant Class B1-no flaming particles, self-extinguishing
    Permissible Ambient temperature Standard insulation -30°C- +70°C|High temperature insulation -20°C- +115°C|Low temperature insulation -40°C- +80°C
