Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories

Certification
Good quality Electric Chain Hoist for sales
Good quality Electric Chain Hoist for sales
I'm Online Chat Now

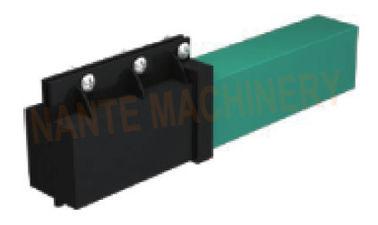

Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories

China Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories supplier
Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories supplier Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories supplier Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories supplier

Large Image :  Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories

Product Details:

Place of Origin: CHINA
Brand Name: NANTE
Certification: ISO9001, CE, CCC
Model Number: NSP

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Carton
Delivery Time: 1-2 weeks
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000000 pcs per year
Contact Now
Detailed Product Description
Material: Plastic Rated Current: 1600Amp

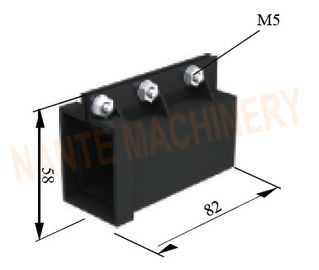

Length: 82mm Type: NSP-H32
Weight: 0.04kg Color: Black, Green

Type Weight(kg) Material
H32EC 0.04 Plastic





Specifications

Single Safe Collector Bracket
1.Easy Installation
2.Top Quality
3.Factory Price
4.Long Life Expectancy



Single Safe Collector Bracket

Unipole Insulated Conductor.jpg

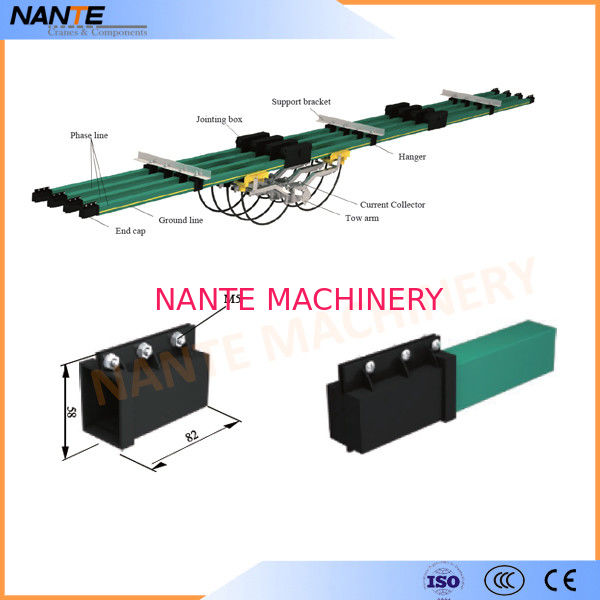

Unipole Conductor Rail system NSP-H Series
Conductor rail Aluminium Copper
Type H19 H24 H32 H24 H32
Nominal current at 100% DC and 35°C [A] 150 250-300 320-1250 500-800 800-1600
D.C.resistance at 35°C [Q/km] 0.376 0.2030.187 0.1530.046 0.1160.067 0.670.0.39
Impendance at 35C [Q/km] 0.376 0.2090.195 0.1550.048 0.1180.069 0.0690.04
Support spacing [m] 1.8 1.5 1.8 1.5 1.8
Rail length [m] 4/6 4/6 4/6 4/6 4/6
Housing length [m] 3.88/5.88 3.88/5.88 3.83/5.83 3.88/5.88 3.83/5.83
Max.voltage [V] 660V Dielectric strength [KV/mm] 30-40
Travelling speed ≤600 m/min standard GB7251.2-2006
Expansion joint Only required when total length≥200m
Flame retardant Class B1-no flaming particles, self-extinguishing
Permissible ambient temperature Standard insulation -20℃- +70℃
High temperature insulation -10℃- +115℃



Model Code

Type Conductor Rail

Cross section

(mm2)

Nominal current

(A)

Leakage-distance

(mm)

Resistance

(Q/km)

Weight

(kg/m)

NSP-H32-230/320 Aluminium 230 320 80 0.153 0.96
NSP-H32-285/500 Aluminium 285 500 80 0.116 1.13
NSP-H32-360/630 Aluminium 360 630 80 0.087 1.38
NSP-H32-420/800 Aluminium 420 800 80 0.067 1.5
NSP-H32-550/1000 Aluminium 550 1000 80 0.058 1.83
NSP-H32-600/1250 Aluminium 600 1250 80 0.046 2.01



Plastic Green NSP-H32 End Cap For Unipole Insulated Condutor As Accessories

Type Conductor Rail

Cross section

(mm2)

Nominal current

(A)

Leakage-distance

(mm)

Resistance

(Q/km)

Weight

(kg/m)

NSP-HT32-230/800 Copper 230 800 80 0.067 2.43
NSP-HT32-300/1000 Copper 300 1000 80 0.058 3.05
NSP-HT32-360/1250 Copper 360 1250 80 0.046 3.56
NSP-HT32-450/1600 Copper 450 1600 80 0.039 4.37





Description:

Support mechanisms that attach to crane rail.

1. Fix and secure support brackets at the correct pitch.(Note:Fix support brackets at a pitch that is divisible into the conductor bar length.This will always ensure that the joint positions do not foul the support brackets.)The recommended support pitch is shown below.

2. Observe all alignment tolerances.





Features:

1.The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.





2.Strict selection of materials

The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance





3.Small volume, variety of installation methods

Small occupying space, snap-in installation, convenient to use, easy to maintain
