NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail

NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail

    • NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail
    • NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail
    • NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail
  • NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO9001, CE, CCC
    Model Number: NSP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: Carton
    Delivery Time: 1-2 weeks
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 1000000 pcs per year
    Contact Now
    Detailed Product Description
    Material: Aluminium / Copper Rated Current: 1600Amp

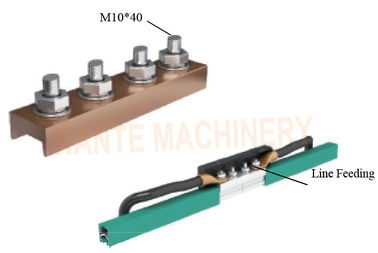

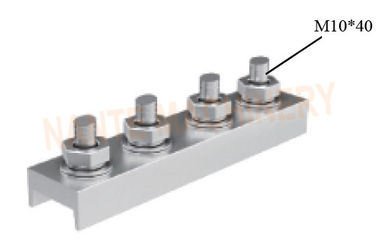

    Max.Weight: 0.82kg Bolt: M10*40
    Color: Black/Silver/Green Type: NSP-H32

    Type Weight(kg) Material
    H32JBT-500A 0.32 Aluminium
    H32JBT-800A 0.41 Copper
    H32JBT-1000A 0.40 Aluminium
    H32JBT-1250A 0.66 Copper
    H32JBT-1600A 0.82 Copper



    Specifications
    Single Safe Collector Bracket
    1.Easy Installation
    2.Top Quality
    3.Factory Price
    4.Long Life Expectancy


    Introduction of the product

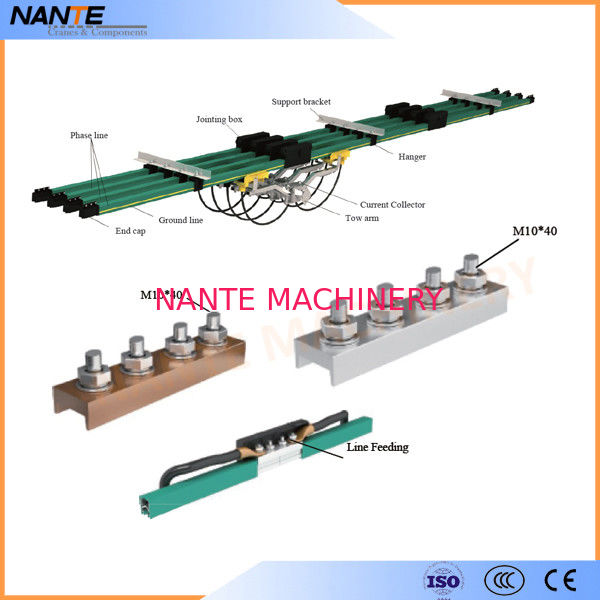

    Powerail enclosed conductor rail system is a powerail,protected from contact(IP 23),For indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35—240A.
    The current collectors, running in the ball bearings, are guided by the housing.
    The main is transferred by spring—stored carbon brushes.
    Type HFP-P: not include Sealing strip, with factory-mounted fate copper band and bolted-operated, plug connectors.
    Type HFP-P:curves for R≥800mm,with factory-mounted flat copper band and screw connectors.
    Approved and listed by: CCC, ISO9001 and CE.

    Features:
    1.The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.


    2.Strict selection of materials
    The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance


    3.Small volume, variety of installation methods
    Small occupying space, snap-in installation, convenient to use, easy to maintain

    Model Code

    Type Conductor Rail

    Cross section

    (mm2)

    Nominal current

    (A)

    Leakage-distance

    (mm)

    Resistance

    (Q/km)

    Weight

    (kg/m)

    NSP-H32-230/320 Aluminium 230 320 80 0.153 0.96
    NSP-H32-285/500 Aluminium 285 500 80 0.116 1.13
    NSP-H32-360/630 Aluminium 360 630 80 0.087 1.38
    NSP-H32-420/800 Aluminium 420 800 80 0.067 1.5
    NSP-H32-550/1000 Aluminium 550 1000 80 0.058 1.83
    NSP-H32-600/1250 Aluminium 600 1250 80 0.046 2.01


    NSP-H32 Aluminium / Copper Joint For Unipole Insulated Conductor Rail

    Type Conductor Rail

    Cross section

    (mm2)

    Nominal current

    (A)

    Leakage-distance

    (mm)

    Resistance

    (Q/km)

    Weight

    (kg/m)

    NSP-HT32-230/800 Copper 230 800 80 0.067 2.43
    NSP-HT32-300/1000 Copper 300 1000 80 0.058 3.05
    NSP-HT32-360/1250 Copper 360 1250 80 0.046 3.56
    NSP-HT32-450/1600 Copper 450 1600 80 0.039 4.37
