12m Length Crane Rail

China 12m Length Crane Rail supplier
12m Length Crane Rail supplier 12m Length Crane Rail supplier 12m Length Crane Rail supplier

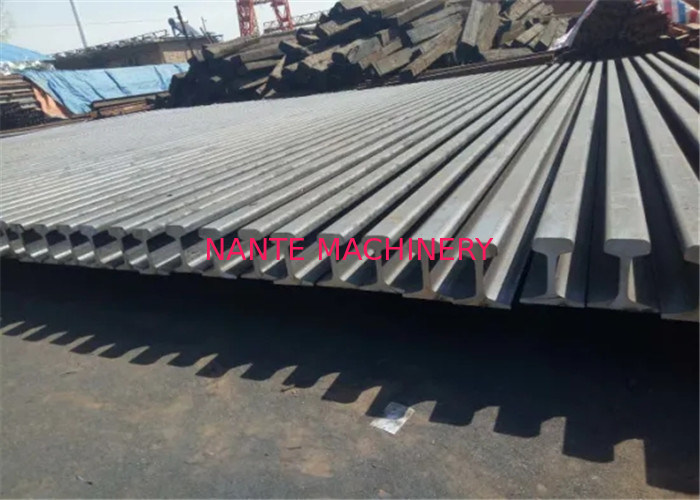

Large Image :  12m Length Crane Rail

Product Details:

Place of Origin: CHINA
Brand Name: NANTE
Certification: ISO
Model Number: QU70/QU80/QU100/QU120

Payment & Shipping Terms:

Minimum Order Quantity: 20M
Price: 50-85usd/m
Packaging Details: in bulk
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10000000 Meter/Meters Per Year
Detailed Product Description
Model: QU Standard: GB3426-82
Port: Dalian Material: Q235B
Length: 12m HS: 7302.10
High Light:

gantry Crane Rail


12m gantry rail

QU70/QU80/QU100/QU120 Crane Rail

Material: U71Mn


type weight (kg/m) material length (m)
QU100 88.96 U71Mn 12
rail height (mm) bottom width (mm) head width (mm) web thickness (mm)
150 150 100(108) 38
Crane Rail Size Rail Height Bottom Width Head Width Web Thickness Weightkg/m
QU70 120 120 70(76.5) 28 52.80
QU80 130 130 80(87) 32 63.69
QU100 150 150 100(108) 38 88.96
QU120 170 170 120(129) 44 118.10
Product Introduction and application:

Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.

The steel rail in china are divided into Crane rail, Heavy rail and light rail.

Crane rails in China mainly includes: QU70, QU80, QU100 and QU120.

Crane rails are designed for carrying heavy loads and are used in the laying of crane track for port building. Compared with the railway's heavy rail, crane rail height is low and head width thick waist size is bigger.
