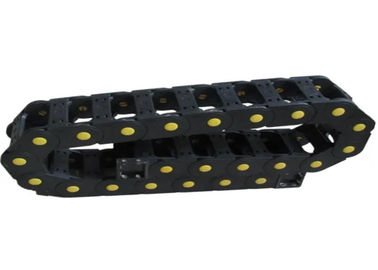

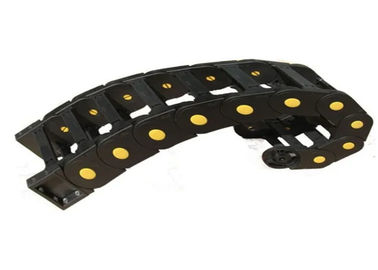

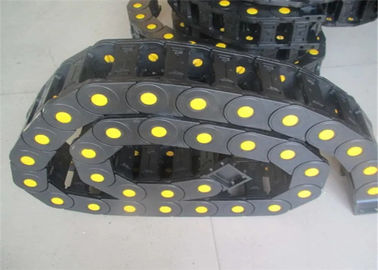

CNC Machine Tool Nylon Cable Chain

China CNC Machine Tool Nylon Cable Chain supplier
CNC Machine Tool Nylon Cable Chain supplier CNC Machine Tool Nylon Cable Chain supplier CNC Machine Tool Nylon Cable Chain supplier

Large Image :  CNC Machine Tool Nylon Cable Chain

Product Details:

Place of Origin: CHINA
Brand Name: NANTE
Certification: ISO
Model Number: TKA

Payment & Shipping Terms:

Minimum Order Quantity: 50M
Price: 3.5USD/M
Packaging Details: PLYWOOD
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 500SET/WEEK
Detailed Product Description
Inner Height: 45 Mm Structure (for Chain): Nylon Roller Chain
Specification: RoHS, SGS, TUV HS Code: 3926909090
Trademark: NANTE Package: Carton Or As You Require
High Light:

45 mm Nylon Cable Chain

,

45 mm energy cable drag chain

Closed Cable Chains

Specification:

· Enclosed structure
· low noise
· high load resistant
· chemical, water and temperature resistant

Product description:
Application:
(1)Applies in the occasion where reciprocating motion is used which has traction and protection to the built-in cable, tubing, the trachea and conduit, etc
(2) Drag chain has been widely used in the numerical control machine tools, electronic equipments, stone machine, glass machinery, the injection molding machine, robots, overweight transportation equipments, automatic warehouses, etc.
Part No. Inner Inner Outer Outer Bending radius
height width height width
  (mm) (mm) (mm) (mm) R(mm)
GNFBQH4550-1 45 50 65 85 R75R100R125R150R200
GNFBQH4560-1 45 60 65 95 R75R100R125R150R200
GNFBQH4575-1 45 75 65 110 R75R100R125R150R200
GNFBQH45100-1 45 100 65 135 R75R100R125R150R200
GNFBQH45125-1 45 125 65 160 R75R100R125R150R200
GNFBQH45150-1 45 150 65 185 R75R100R125R150R200
GNFBHK4550-2 45 50 66 78 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK4570-2 45 70 66 98 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK4575-2 45 75 66 103 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK4590-2 45 90 66 118 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK45100-2 45 100 66 128 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK45125-2 45 125 66 153 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK45150-2 45 150 66 178 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK45175-2 45 175 66 203 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK45200-2 45 200 66 228 R100/R125/R150/R175/R200/R225/R250/R300
GNFBHK4550-1 45 50 65 85 R75R100R125R150R200R250R300
GNFBHK4560-1 45 60 65 95 R75R100R125R150R200R250R300
GNFBHK4575-1 45 75 65 110 R75R100R125R150R200R250R300
GNFBHK45100-1 45 100 65 135 R75R100R125R150R200R250R300
GNFBHK45125-1 45 125 65 160 R75R100R125R150R200R250R300
GNFBHK45150-1 45 150 65 185 R75R100R125R150R200R250R300




Characteristics:
Most carriers have a rectangular cross section where the cables lie in. Cross bars along with the length of the carrier can be opened from the outside, so that the cables can be easily inserted and connected with plugs.
Internal separators in the carrier can separate the cables. Mounting brackets fix the ends of the carrier to the machine.Besides, cable carriers usually only permit bending in one direction.
In combination with rigid mounting of the ends of the carrier, this can entirely prevent the enclosed cables from flopping in undesired directions and becoming tangled or crushed.
It has very beautiful appearance, so the product can make the machinery more beautiful.
It is of high durability, about 500 million reciprocating motions under normal conditions.
It can be easily installed and dismantled, you just need a flat mouth screwdriver to open it and dismantle it.
It can run with high speed, under normal situation, it can reach to 5m/s.
Working temperature:-40-250 centigrade
Material:PA



Package and Transportation:
The products are wrapped by plastic woven cloth. Detailed packing can be according to your requirement. We will pack and ship the products carefully and deliver it as soon as possible.
Our Service
Good Service : Our goal is to provide you with courteous, expedient, professional service of the highest caliber.Our service is available for seven twenty-four! Free samples can be prepared for our clients, and the products you buy would be as same as the samples. We will keep regular connection with our clients after sales and look forward to further cooperation.
Good Quality: We are professional in plastic hose field. We have strict quality control system and good reputation in mainland and global markets.
Fast & Cheap Delivery: We have big discount from the forwarder because of long-term cooperation.
No business is small business, so small orders are also welcomed here.
