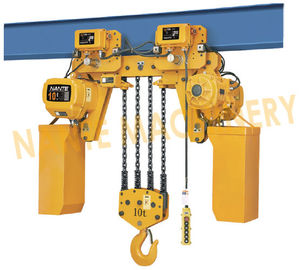

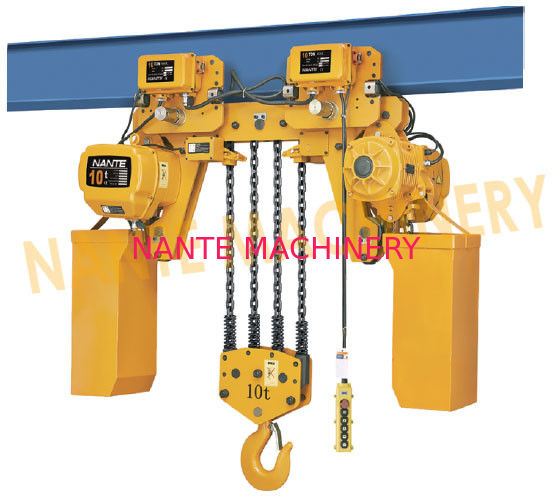

Electric Rope Hoist / 10 Ton 5 Ton Electric Hoist With Double Cover Protection

Electric Rope Hoist / 10 Ton 5 Ton Electric Hoist With Double Cover Protection

    • Electric Rope Hoist / 10 Ton 5 Ton Electric Hoist With Double Cover Protection
    • Electric Rope Hoist / 10 Ton 5 Ton Electric Hoist With Double Cover Protection
  • Electric Rope Hoist / 10 Ton 5 Ton Electric Hoist With Double Cover Protection

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: CE
    Model Number: HHBB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Packaging Details: CARTON
    Delivery Time: 1-2 weeks
    Payment Terms: L/C, T/T
    Supply Ability: 100000 sets per year
    Contact Now
    Detailed Product Description
    Capacity: 10t Lifting Speed: 2.8/0.9 M/min
    Motor Power: 2x3.0kw Control Voltage: 24V/36V/48V
    Power Supply: 3-Phase 380V 50Hz No.of Load Chain: 4
    Spec.of Load Chain: φ11.2
    High Light:

    manual chain hoists


    10 ton electric chain hoist

    Our company

    After 20 years rapid development, NANTE and its parents company ZHONGJIAN Group has grown into a leading integrated solution provider for crane and crane components in China. Dedicated to the research and development of new lifting and handling technologies, we adopt innovative ideas and design in developing new products and services. Backed up by a wealth of industrial experience on lifting industry, we can provide to customer wide range of lifting equipment and components with scientific design, good safety, high performance, efficient operation and low maintenance cost. We are committed to help our clients to reduce investment cost, improve production efficiency, and economize energy consumption.


    1. Double-cover protection; Thick friction discs; Safety latches; Overload protection.
    2. Excellent quality, top in China
    3. Excellent after-sale serve, market agent support and protection.
    4. Sample order and trail order are acceptable.
    5. Accept OEM, more than 20 years OEM experience .
    6. CE&GS&ISO
    7. Manufacturer load tested to 150% of rated capacity in accordance with ANSI/ASME requirements

    Product Description


    Model HHBB
    10-04S 10-4D
    Capacity(Ton) 10 10
    Lifting speed(m/min) 2.8 2.8/0.9
    Motor Power(kw) 2x3.0 2x3.0/1.0
    Rotation speed(r/min) 1440 2880/960
    Insulation Grade F class
    Travelling speed(m/min) Slow 11m/min & Fast 21 m/min
    Power Supply 3P-380-50Hz
    Control Voltage 24V/36V/48V
    No. of Load Chain 4
    Spec. of Load Chain φ11.2
    Net Weight(kg) 300 360
    I-Beam(mm) 150-220


    Model Unit(mm)
    H A B D E R T
    HHBB10-04S 1190 630 315 890 445 142 231
    HHBB10-04D 1190 670 388 890 445 142 231



    1. Combine all the desirable features found in various other similar products into one revolutionary creation.

    2. Maintenance-free design is safe and reliable to use,

    3. Compact design comes in small size, which allows ease of carrying around.

    4. Exceptional performance

    5. Maximum return on investment, great price to performance ratio.

    6. Multiple patents granted for one innovative entertainment hoist.

    7. Available with a number of configurations to solve various applications.



    1. Three meters of lifting height and power supply cable as standard accompanies.

    2. Extending the load chain is prohibited with additional links.

    3. Optional lifting length, push button cord and power supply cable beside standard is available on your request.

    4. Canvas chain container are standard accompanies; steel chain containers are available if your lift is more than capacity of the standard container volume.

    5. Emergency stop button on the push button switch, push down it, the motor circuit will be cut off.

    6. Power voltage: 110V, Single phase, 220V-690V, dual voltage is available. 50Hz and 60Hz are optional.

    7. Control voltage: 24V, 36V, 48V are optional.

    8. Wireless remote control can be assembled.
