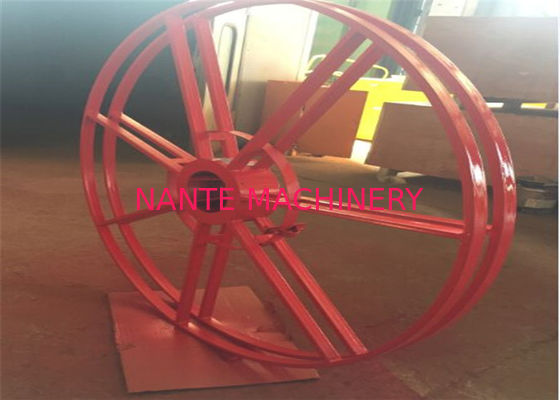

Industrial Type Spring Cable Reel Drum For Cable Control , Cable Reeling Drum

Industrial Type Spring Cable Reel Drum For Cable Control , Cable Reeling Drum

    • Industrial Type Spring Cable Reel Drum For Cable Control , Cable Reeling Drum
    • Industrial Type Spring Cable Reel Drum For Cable Control , Cable Reeling Drum
    • Industrial Type Spring Cable Reel Drum For Cable Control , Cable Reeling Drum
  • Industrial Type Spring Cable Reel Drum For Cable Control , Cable Reeling Drum

    Product Details:

    Place of Origin: CHINA
    Brand Name: Nante
    Certification: CE
    Model Number: CR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: NEGOTIABLE
    Packaging Details: PLYWOOD CASE
    Delivery Time: 15 WORKING DAYS
    Supply Ability: 5000SETS/YEAR
    Contact Now
    Detailed Product Description
    Voltage: 380V/440V Temperature: -20℃~+45℃
    Protection Class: IP65 Max.current: 800A
    Max.speed: 20m/min Installation: Vertical Installation
    High Light:

    overhead crane end trucks

    ,

    bridge crane end trucks





    Cable Reeling Drum With Red Surface And 380v/440v Voltage Multi-specification





    Working principle


    When moving equipment such as a trolley or a moving device such as a car, pull the roll and release the cable. At this time, the flat scroll coil is wound on the mandrel and the spring stores energy. When the electrical equipment to return, the spring force, the drum in the opposite direction of rotation, synchronous winding cable.



    Installation method

    .png












    Structural features


    1, to flat scroll spring as a driving force, no power consumption, safe and reliable work.
    2, the use of slip slip - carbon brush frame structure to transfer power, power supply continuous smooth.
    3, set the reversible body, to avoid reversing the reel and break the spring.
    4, simple structure, installation, commissioning, easy maintenance.




    Main product model


    1, DJ1 series: the use of chain drive, an increase of product plasticity, according to the user's requirements for the use of spring configuration and chain transmission ratio, the cable force appropriate.
    2, DJ2 series: with a compact, small size, light weight, easy installation and so on. Widely used in electric flat car, mobile car amount, electric grab and other mobile electrical equipment.
    3, DJ5 Series: The product is made of plastic shell, compact structure, belonging to the mini spring-type cable reel, mainly for the current below 10A, the moving distance of 10 meters, and the installation of small space occasions.
    4, JT1 series: spring frame, reel and slip ring device split design, the cable reel is more stable, easy maintenance.
    5, JT2 series: mainly used for current below 50A, moving distance in the range of 30 meters. The main features and structure are similar to DJ2
