    Product Details:

    Place of Origin: China
    Brand Name: Nante

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: 10-20days
    Packaging Details: 1. Carton box: 60*60*30cm ,80*80*30cm 2. PLY-Wooden case: per size 3. Pallet: PLY-Wooden pallet or Metal pallet
    Delivery Time: 15 days
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    High Light:

    gantry crane components

    ,

    overhead crane spare parts

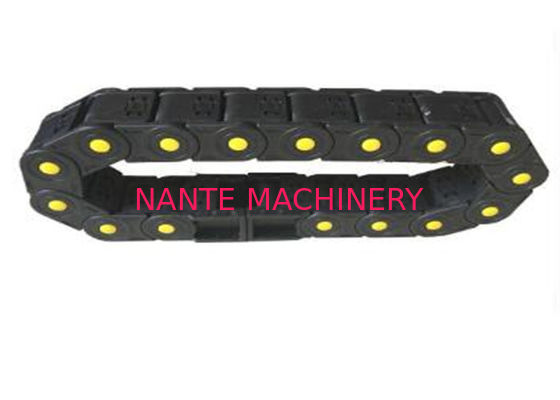

    Flexible tray chain wire carrier cable tracks

    1) towline shape tank chain, composed of a large number of unit links, links freely rotate between.
    (2) The same series of towline within the high, outer high, the same pitch, towline wide, bending radius R may have different options.
    (3) The unit link is composed of left and right link plates and upper and lower cover plates. Each section of the towline chain can be opened and disassembled and disassembled conveniently without threading. After opening the cover plate, cables, tubing, trachea and water pipes can be put into the towline .
    (4) Another separator can be provided to separate the space within the chain as needed.

    Type
    Inner H*W
    Outer H*W
    Stype
    Bending diameter(R)
    Pitch
    Unsupported leght
    KQ20*25
    20*25
    35*48
    Bridge type Top and bottom lids can be opened
    55.75
    47
    1.5meters
    KQ20*38
    20*38
    35*61
    KQ20*50
    20*50
    35*73
    KQ20*57
    20*57
    35*80
    KQ20*65
    20*65
    35*88
    KQ20*70
    20*70
    35*93
    KQ20*75
    20*75
    35*98
    KQ20*100
    20*100
    35*123
    KQ20*103
    20*103
    35*126
    KF2O*38
    20*38
    35*61
    Totally enclosed TOP and bottom lids can be opened
    KF20*50
    20*50
    35*73
    KF20*57
    20*57
    35*80
    KF20*75
    20*75
    35*98



    Overhead Crane Energy Chain System Flexible Tray Chain Wire Carrier Cable Tracks 0

    Overhead Crane Energy Chain System Flexible Tray Chain Wire Carrier Cable Tracks 1

    Title goes here.

    (1) The fuel tank chain in the shape of a towline is composed of a large number of unit links, and the links can be freely rotated.
    (2) The same series of towline height, outer height, same pitch, drag chain width, bending radius R can have different choices.
    (3) The unit connecting rod is composed of left and right link plates and upper and lower cover plates. Each part of the chain can be easily opened and removed and removed without threading. Cables, pipes, air pipes and water pipes can be placed in the chain after the cover is opened.
    (4) Another separator can be provided to separate the space within the chain as needed.
