| Place of Origin: | CHINA |
| Brand Name: | NANTE |
| Certification: | ISO |
| Model Number: | C32 |
| Minimum Order Quantity: | 100m |
|---|---|
| Packaging Details: | Seaworthy packing |
| Delivery Time: | Within 14 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000000 meters per year |
| Material:: | Galvanized Steel | Model Number:: | C32 |
|---|---|---|---|
| C Track Size:: | 32mm*30mm*1.5mm | Standard Length:: | 4m Or 6m |
| Temperature:: | -30℃ To +125℃ | Travel Speed:: | <120m/min |
| Cable Load:: | <20kg | ||
| High Light: | c rail festoon system,festoon trolley cable carrier |
||
For delivering power&control to mobile equipment in a safe, efficient and maintenance free method.
Detailed Product Description
Galvanized Steel round cable c truck trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Detailed Product Description
Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

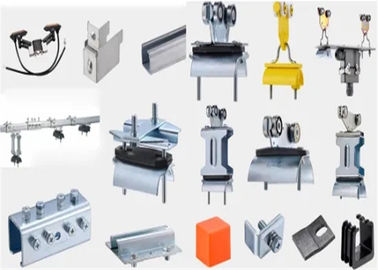

The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.
Application
C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
Round cable C truck trolley Technical Parameters

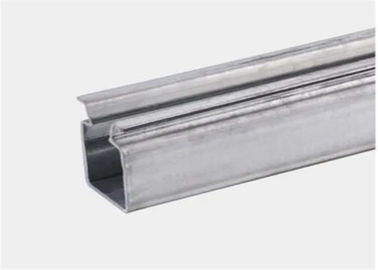

Type | C32*30*1.5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
Material | Galvanized steel / Except C63 | |||
Weight kg/m | 1.19 | 2.00 | 5.98 | 1.03 |
Technical data | ||||
A | 32 | 40 | 63 | 30 |
B | 30 | 40 | 63 | 28 |
C | 12 | 13 | 18 | 10 |
6 | 1.5 | 2.0 | 4.0 | 1.5 |
Spacing | Max. Cable Load | |||
1.5m | 89kg | 188kg | 503kg | 70kg |
2.0m | 51kg | 103kg | 425kg | 36 kg |
2.5m | 39kg | 73kg | 302kg | 22kg |
3.0m | 23kg | 49kg | 195kg | - |
4.0m | - | 28kg | 85kg | - |
| Towing Trolley C32RST | End Trolley C32RET | Middle Trolley C32RMT | ||||
| Type | C32RST-30 | C32RST-40 | C32RMT-30 | C32RMT-40 | C32RET-30 | C32RET-40 |
| Wheels | Ball bearings, hardened, galvanized Temperature resistance Lub. grease of wheels: -30C to +125C Travelling speed: ca. 120 m/min. | |||||
| Material | Carrier body: steel, galvanized Support saddle: galvanized steel or aluminium Dowel: Brass or steel, galvanized Hardware: galvanized Temperature resistance: -30°C —— +125°C | |||||
| Max. cable load | max. 20kg per carrier | max. 25kg per carrier | max. 20kg per carrier | max. 25kg per carher | max. 20kg per carrier | max. 25kg per carher |
| Dim. of Cable | max.Diam=30mm | max.Diam=40mm | max.Diam=30mm | max.Diam=40mm | max.Diam=30mm | max.Diam=40mm |
| Weight(kg) | 0.73 | 0.75 | 0.36 | 0.38 | 0.27 | 0.29 |
