HTR High Tro Reel System With Current Capacity From 50A To 140A Of 3 / 4 / 6 Poles

HTR High Tro Reel System With Current Capacity From 50A To 140A Of 3 / 4 / 6 Poles

    • HTR High Tro Reel System With Current Capacity From 50A To 140A Of 3 / 4 / 6 Poles
    • HTR High Tro Reel System With Current Capacity From 50A To 140A Of 3 / 4 / 6 Poles
  • HTR High Tro Reel System With Current Capacity From 50A To 140A Of 3 / 4 / 6 Poles

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO9001, CE, CCC
    Model Number: HTR

    Payment & Shipping Terms:

    Minimum Order Quantity: 300m
    Packaging Details: Seaworthy packing
    Delivery Time: Within 7 days
    Payment Terms: L/C, T/T
    Supply Ability: 1000000 meters per day
    Contact Now
    Detailed Product Description
    Model Number:: HTR Sleeve Material:: PVC
    Rated Voltage:: 600V Conductor Material:: Copper
    Length:: In Reel Current:: 50~140A
    Poles:: 3/4/6ploes Sparts: Plastic/Gavlanied Steel
    High Light:

    High Tro Reel

    ,

    conductor rail system

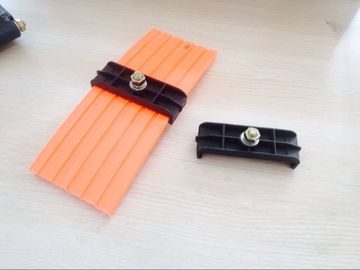

    HTR High Tro-Reel System with Current Capacity From 50A to 140A of 3, 4, 6 Poles



    1. Bridge Safety Low Power Crane Conductor Rail
    2. Simple structure, easy for installation
    3. Current: 50~140A



    Safety Power Rails for Bridge Crane, Low-Power Mobile Devices Seamless Insulated Conductor Bar, Seamless Conductor Rails, High Tro Reel System for overhead crane, light in weight, simple in structure.



    Detail

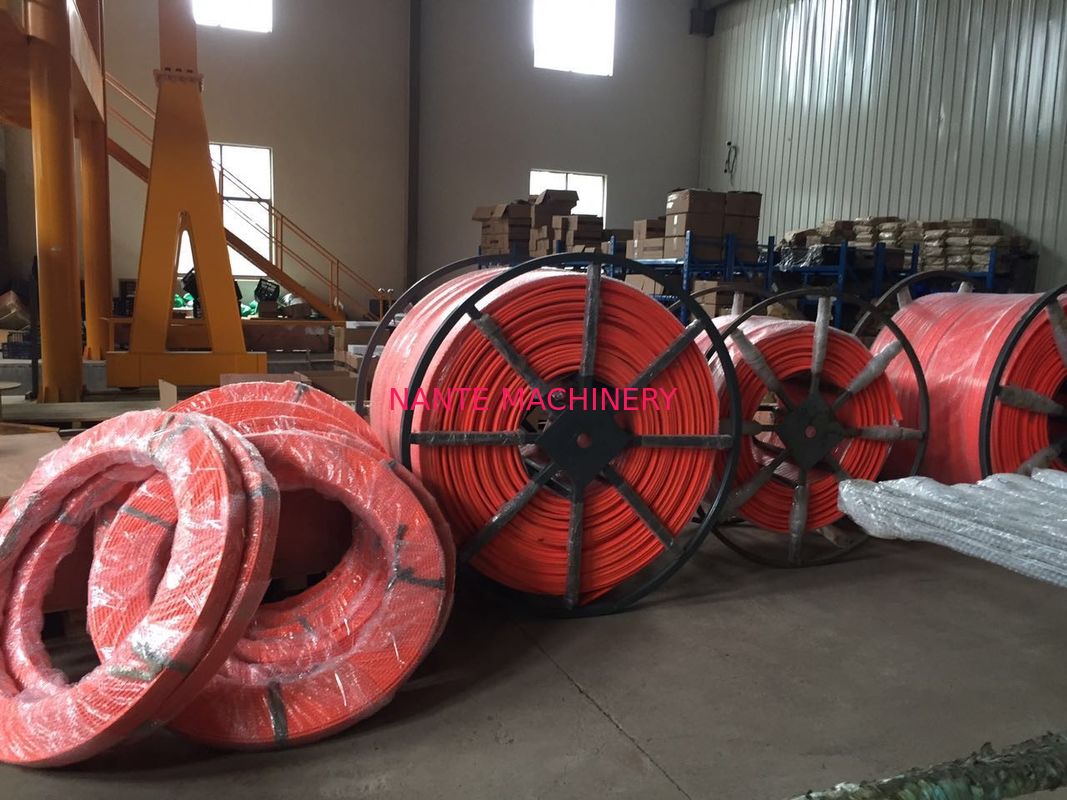

    NANTE HTR series High Tro Reel System is a new Type of industrial mobile power feeding system. It can be 6 poles with current capacity from 50A to 80A.

    Safe, Stable, Seamless.

    Light weight, Simple structure, Easy for carry and install.

    Copper contact closely with insulated sleeve, no bad contact due to vibration.

    Insulated material is special formula PVC, which is impact resistant, uv resistant.

    Suitable for various kind of curve runway. ( Curve R.≥0.6m )



    Detailed Product Description

    Low-Power Insulated High Tro Reel Systems are used widely for workshops, ring application or slip rings, stacking system and other industrial applications.

    It is a new type of industrial mobile power feeding system, and the most typical advantage is the light weight and tender nature, easy for carry and install. The conductor bar has 3 poles and 4 poles two choice, with a current capacity about 50A to 80A, especially used to carry low power.

    Crane Copper Busbar System For Power Supply

    *Sepecification

    1. Conductor Qty: 3P 4P 6P
    2. Current: 50A~140A
    3. Conductor material: Oxygen-free copper
    4. Insulation Material: Quality PVC

    *Application

    Crane, low power curve hoisting equipments, mobile machinery, machinery plants, small steel factory, Amusement equipment etc.
    Ambient temperature <55ºC



    *Advantages

    1. No joint, long distance continuous power supply.
    2. Small space, Low noise.
    3. Low voltage drop.
    4. Stable operation, fast speed, Good conductivity and contact performance.
    5. Easy to install, replace and transport.
    6. Long service life.
    7. The minimum bend radius is 750mm.



    Specifications

    1. Low-Power Mobile Devices Seamless Crane Rail Bar
    2. Simple structure, easy for installation.
    3. Current: 50~140A



    Low-Power Mobile Devices Seamless Crane Rail Bar, Low-Power Mobile Devices Seamless Insulated Conductor Bar, Seamless Conductor Rails, High Tro Reel System for overhead crane, light in weight, simple in structure.


    Quick Detail
    Rated value: 4P, 600V, 50~140A.
    Conductor material: Copper.
    Insulated sleeve material: UPVC(heat resistance: 75° C).
    Detailed Product Description
    Low-Power Insulated High Tro Reel Systems are used widely for workshops, ring application or slip rings, stacking system and other industrial applications.
    It is a new type of industrial mobile power feeding system, and the most typical advantage is the light weight and tender nature, easy for carry and install. The conductor bar has 3 poles and 4 poles two choice, with a current capacity about 50A to 120A, especially used to carry low power.



    *Technical parameters

    Type Poles Conductor Cross Section
    (mm2)
    Max. Current
    (A)
    Weight
    (kg/m)
    HTR-3-10/50A 3 3x10 50A 0.57
    HTR-3-15/80A 3 3x15 80A 0.73
    HTR-3-20/100A 3 3x20 100A 0.85
    HTR-3-25/120A 3 3x25 120A 0.98
    HTR-3-35/140A 3 3x35 140A 1.27



    Type Poles Conductor Cross Section
    (mm2)
    Max. Current
    (A)
    Weight
    (kg/m)
    HTR-4-10/50A 4 3x10+1x10 50A 0.75
    HTR-4-15/80A 4 3x15+1x10 80A 0.90
    HTR-4-20/100A 4 3x20+1x10 100A 1.05
    HTR-4-25/120A 4 3x25+1x10 120A 1.15
    HTR-4-35/140A 4 3x35+1x10 140A 1.43



    Type Poles Conductor Cross Section
    (mm2)
    Max. Current
    (A)
    Weight
    (kg/m)
    HTR-6-10/50A 6 6x10 50A 1.10
    HTR-6-15/80A 6 6x15 80A 1.50
