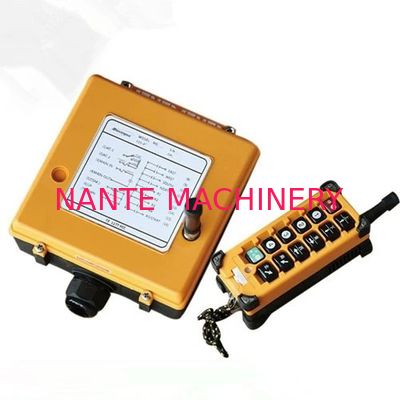

Plastic F23-A++ Crane Remote Controls / Industrial Remote Controller

Plastic F23-A++ Crane Remote Controls / Industrial Remote Controller

    • Plastic F23-A++ Crane Remote Controls / Industrial Remote Controller
    • Plastic F23-A++ Crane Remote Controls / Industrial Remote Controller
    • Plastic F23-A++ Crane Remote Controls / Industrial Remote Controller
  • Plastic F23-A++ Crane Remote Controls / Industrial Remote Controller

    Product Details:

    Place of Origin: China
    Brand Name: Nante
    Certification: ISO
    Model Number: F23-A++

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: 300usd/set
    Packaging Details: 1set / Box; 10 Sets / Big Carton
    Delivery Time: 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100set/Day
    Contact Now
    Detailed Product Description
    Model NO.: F23-A++ Voltage: AC 380V/ 36V/220V/110V Or DC12V/24V
    Material: Plastic Battery Type: AA Battery
    Temperature: -35°c___+80°c HS Code: 85269200
    High Light:

    hoist push button switch

    ,

    bridge crane Control



    F23-A++ crane remote controls/industrial remote controller


    Summary:

    1. More than 10 years researching and exporting experience in Radio Remote Control industry.

    2. Well and high quality control, all working process according to ISO9001:2008.

    3. CE, FCC & ISO certificates.

    4. One year warranty.

    5. Sample order acceptable.

    6. OEM acceptable.





    Products Application:

    MD double speed electric hoist or double speed electric chain hoist with hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under 8.



    Brief Introduction:

    Transmitter size:216*75*43mm weight:315g

    Receiver size:200*165*107mm weight:1400g





    Standard configuration:

    One transmitter;

    One receiver;

    One 1m cable connect with receiver;

    One operation and maintain manual.



    Products Features:

    * 10 single speed push button (3,4 key are useless)

    * Control points are up to 8.

    * With the battery voltage alarm device to cut off the circuit when voltage is insufficient.

    * With the Rotate key switch to guarantee the safety.

    * Set the internal functions by computer interface

    * Up/down ,east/west , south/ north push button can be set mutual inhibition or not .

    * Power button can be set start,speed up,jump strokes,ordinary etc.

    * Spare 1-2 key can be set ordinary, interlock,jump strokes,switch etc.



    SPECIFICATION:

    Application Overhead cranes, hoist ,chain hoist and other industrial machine.
    Frequency 310.0325~331.165Mhz
    Frequency generation: Crystal (plug in)
    Channel 80
    Channel Spacing 0.2675MHz
    Control motions 8
    Control distance Up to 100m
    Certificates CE, FCC, ISO9001:2008
    Number of push button 8 Single speed push button+1 START+1 STOP
    Unique code Over 4.3billon unique ID codes .
    Working temperature -35°C ~ +80°C
    Enclosure protection class IP65
    Transmitter power AA-size batteries
    Receiver power AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
    Output capacity Full sealed relay output with 5 amperes
    Warranty 1 year
    Material glass fiber
