    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO, CE, CCC
    Model Number: HTR

    Payment & Shipping Terms:

    Minimum Order Quantity: 300m
    Packaging Details: carton or wooden case
    Delivery Time: within 10days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 10000000 Meter/Meters per Year
    Contact Now
    Detailed Product Description
    Rated Value: .: 4P, 600V, 50~140A Conductor Material:: Copper
    Insulated Sleeve Material:: UPVC Heat Resistance:: 75℃
    Poles:: 3/4/6ploes Model Number:: HTR
    High Light:

    conductor rail system

    ,

    crane conductor bar

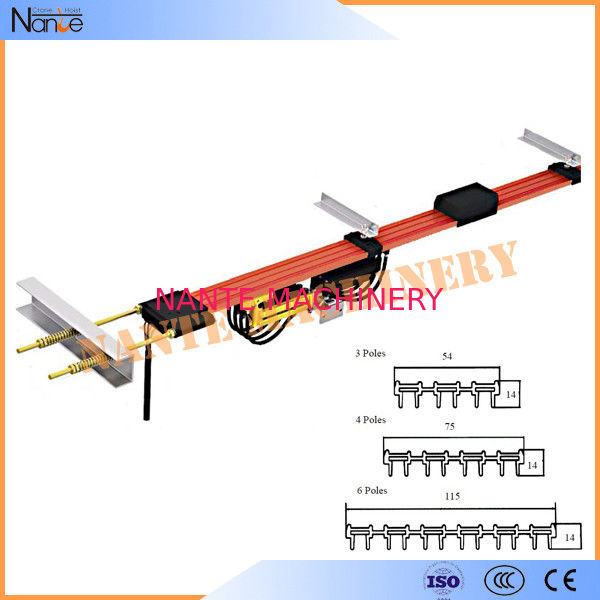

    PVC Seamless Copper Conductor Rail System Overhead Monorail Systems





    Quick Details



    • Rated value: 4P, 600V, 50~140A.

    • Conductor material:  Copper.

    • Insulated  sleeve  material: UPVC(heat resistance: 75℃).





    PVC Seamless Conductor System, Flexible Monorail Feeding System, Seamless Power Rail, Safety Power Rails.



    Technical Parameters

    4 Phase Conductor Bar Flexible High Tro Reel For Overhead Crane

    Type

    Poles

    Conductor Cross Section(mm²)

    Max. Current(A)

    Order-NO.

    HTR1004

    4

    3×10+1×0.9

    50A

    761004

    HTR1504

    4

    3×15+1×1.0

    80A

    761504

    HTR2004

    4

    3×20+1×1.0

    100A

    762004

    HTR2504

    4

    3×25+1×1.2

    120A

    725004

    HTR3504

    4

    3×35+1×1.5

    140A

    763504

    HTR1003

    3

    3×10

    50A

    761003

    HTR1503

    3

    3×15

    80A

    761503

    HTR2003

    3

    3×20

    100A

    762003

    HTR2503

    3

    3×25

    120A

    725003

    HTR3503

    3

    3×35

    140A

    763503







    Detailed Product Description



    Low-Power Insulated Tro reel system are used widely for workshops, ring application or slip rings, stacking system and other industrial applications.



    Mechanical properties:



    1. Flexible strength:75N/mm2±10%
    2. Tensile strength:40N/mm2±10%
    3. Temperature range:
    4. Common Housing:  -30oC up to +60oC
    5. BAYBLEND Housing:  -20oC up to +115oC
    6. Combustibility:
    7. Flame retardant
    8. Self extinguishing:class B 1-no flaming paricles,self-extinguishing.
    9. Resistance to chemicals:+45oC
    10. Gasoline:Sulphuric acid 50%
    11. Mineral Oil:Caustic soda 25% & 50%
    12. Grease:Hydro-chloric acid,concentrated.



    Application



    1. Small power line feeding system.
    2. Overhead and elongated tracks for cranes.
    3. Electric hoists, electric tools, stacking systems.
    4. Electric tools
    5. Other applications for supplying power to moving power load.



    Design features:



    1 Safe, stable, non-interface (Apart from the supply point)

    2 Small size, easy installation, economy

    3 Copper and plastic is in close contact with the shock, won't because shaken to caause sex poor, Stability, good performance

    4 Insulators for vinyl chloride + impact resistance, UV resistance, small size, easy installation, economy, special formula, physical resistance.

    5 Applicable to all kinds of curved electric hoist

    6 To adopt THDW products in the short power distance, low frequency, a better environment.
