| Place of Origin: | CHINA |
| Brand Name: | NANTE |
| Certification: | Certificate |
| Model Number: | F21 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | usd40-300/set |
| Packaging Details: | carton |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000set/year |
| Model: | F21 | Speed: | Single / Double Speed |
|---|---|---|---|
| Buttons: | 6/8/10/12 Buttons | Usage: | Universal |
| Shell: | Fiberglass | Weight: | 785g~805g |
| High Light: | hoist push button switch,Crane Remote Control |
||
Features
☆ Auto Frequency Selection
• Chooses top grade RF IC with sophisticated design,
it provides great performance on radio channel selectivity
• No channel changing required when multiple radio
controller are used at the same time
☆ Radio Frequency Filtering
• A sophisticated surface acoustic wave(SAW) filter blocks
unwanted radio signal to ensure smooth radio link
☆ E-card ( plug and play )
• E-card works similar to SIM card in the mobiel phone
• All system data are carried on a small e-card for easy
transfer to a spare system when needed
• E-card is interchangeable between transmitter and receiver.
it allows spare transmitter or receiver to resume to work
without any downtime.
☆ E-card Duplicator
☆ Reliable Communication
☆ Budget & Environmental Saving
☆ Security Enhanced & Anti-Spy
☆ Heavy Duty
| General Specification | |
| Operating Temp. | -30℃~+85℃ |
| Maximum Range | 20M~100M |
| TX power supply | 2 AA size Alkaline batteries |
| RX power supply | 24/36/48/110/220/380VAC±20%(single option) |
| ID Code | 4.3 billion(32 bit an unique non-repeated) |
| Model | Transmitter | Receiver | ||
| Dimension(mm) | Weight(g) | Dimension(mm) | Weight(g) | |
| F21-E2S | 135x55x40 | 155 | 200x85x60 | 785 |

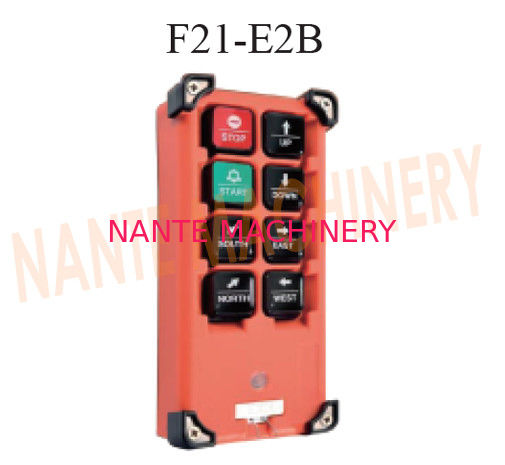

| F21-E2B | 165x75x45 | 295 | ||
| F21-E2M | 165x50x50 | 200 | ||
| F21-E2B-8 | 165x75x45 | 305 | 805 | |
| F21-E2M-8 | 165x50x50 | 210 | ||
| *weight with batteries | ||||
| Transmitter |
| Dimension: 13.5 x 5.5 x 4.0 cm |
| Weight: 155 g(without batteries) |
| Transmitter Power: DC 3V(2 AA size batteries) |
| Receiver |
| Dimension: 20.0 x 8.5 x 6.0 cm |
| Weight: 785 g(with wire cable) |
| Receiver Power Supply: 24/36/48/110/220/380 VAC±20% |
Some Accessories
