Name: Sliding Line Busbar Overhead Crane Spare Parts Power Pipe Enclosed Conductor System
Brand: Shaoxing Nante Lifting Eqiupment Co.,Ltd.
SKU: NANTE-03
Price: 10.89 USD
Availability: InStock

Home Products Electric Wire Rope Hoist

Sliding Line Busbar Overhead Crane Spare Parts Power Pipe Enclosed Conductor System

Product Details:

Place of Origin:	CHINA
Brand Name:	NANTE
Certification:	ISO
Model Number:	NANTE-03

Payment & Shipping Terms:

Minimum Order Quantity:	50M
Price:	8.89-13USD/PC
Packaging Details:	plywood carton
Delivery Time:	7 days
Payment Terms:	L/C, T/T
Supply Ability:	500M/DAY

Contact Now

Detailed Product Description

Material:	Copper And PVC	Poles::	3 Poles And 4 Poles
Stand Length::	4M	Application:	Crane
Max Voltage::	600V	Current Range::	35A-80A-170A
Highlight:	Industrial Electric Hoist , heavy duty rope hoist

low price sliding line busbar power pipe enclosed conductor system for overhead crane

Brief introduction/

Powerail Enclosed conductor rail system is a powerail, protectedfrom contact (IP 23), For indoor and outdoor plants. They are conductor lines in a rigid greeen PVC housingwith differentcopper cross sections for rated currents of 35 - 240A

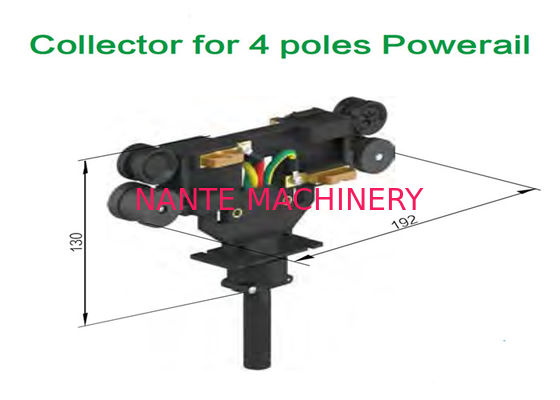

The current collectors, running in ball bearings, are guided bythe housing.

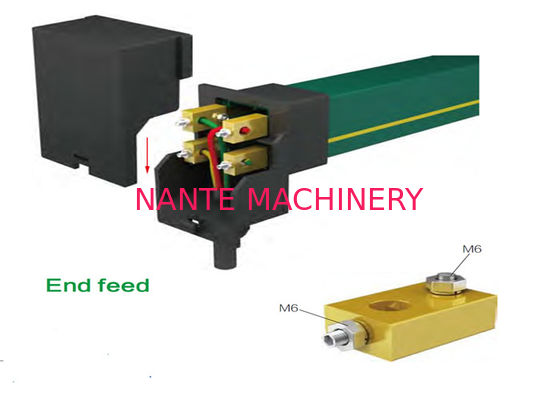

The main is transferred by springstored carbon brushes.Type HFP-P: not include Sealing strip, with factorymounted flat copper band and bolted- -operated plug connectors .

Product Description

Type	Poles	conductor cross section (mm2)	max current (A)	leakage -distance (mm)	max voltage (V)	resistance	weight(kg)	(order-NO)
HFP56-4-8/35	4	8	35	35	600	1.944	2.09	560002
HFP56-4-10/50	4	10	50	35	600	1.656	2.16	560003
HFP56-4-12/65	4	12	65	35	600	1.321	2.23	560004
HFP56-4-15/80	4	15	80	35	600	1.137	2.30	560005
HFP56-4-20/100	4	20	100	35	600	1.011	2.43	560006
HFP56-4-25/120	4	25	120	35	600	0.713	2.56	560007
HFP56-4-35/140	4	35	140	35	600	0.522	2.95	560008
HFP56-4-50/170	4	50	170	35	600	0.337	3.25	560009
HFP56-4-70/210	4	70	210	35	600	0.265	3.85	560010
HFP56-4-80/240	4	80	240	35	600	0.223	4.16	560011

Sliding Line Busbar Overhead Crane Spare Parts Power Pipe Enclosed Conductor System 0
