JDC Aluminum / Copper Single Pole Insulated Conductor Rail System

JDC Aluminum / Copper Single Pole Insulated Conductor Rail System

    • JDC Aluminum / Copper Single Pole Insulated Conductor Rail System
    • JDC Aluminum / Copper Single Pole Insulated Conductor Rail System
  • JDC Aluminum / Copper Single Pole Insulated Conductor Rail System

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: CE
    Model Number: JDC

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Packaging Details: carton or wooden case
    Delivery Time: within 10days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000000 Meter/Meters per Year
    Contact Now
    Detailed Product Description
    Brand: Nante Original: China
    Material: Aluminium Or Copper Current: 320-1600A
    High Light:

    dsl systems

    ,

    conductor bar system

    JDC Aluminum/ Copper Single Pole Insulated Conductor Rails System



    The JDC-H single powerline, easytrack busbar is a modern power supply system using single pole insulated conductor rails. It complies with the latest regulations and provides the electric energy for material handling equipments such as overhead cranes.



    R Type: for curves R≥1200mm.



    Design features:

    1. Compact arrangement,
    2. High safety insulation housing, corrosion resistance.
    3. Easy and exact mounting with multiple supporting bracket.
    4. Easy installation.



    Housing:

    The well insulating green plastic housing holds 3-6 conductors. Usually 4m standard length and other length to meet your runway requirements are available. The ground line is identified by the yellow color so that avoiding phase reversing.



    Joints:

    Snap-in joint splices provide mechanical and electrical continuity. Insulated protection covers are included.



    Feed Sets:

    End feeds or line feeds are available.



    End Caps:

    The open ends of the conductor are closed by end caps.

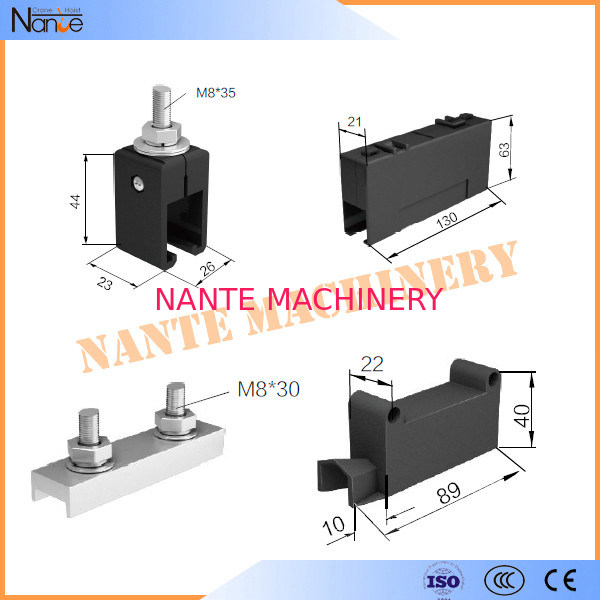

    Hangers:

    Standard brackets for powerail attachment to crane girders are available. Powerail is with sliding and fixpoint hangers.

    Standard distance between suspension points for indoor and outdoor installations: 1200mm.



    Expansion Section:

    The Expansion sections are required to compensate the different expansions between copper conductors and steel-or concrete structures,in varying temperatures without interrupting electrial power.

    Expansion joints are used when the Powerail length between feeds,curves,switches or other fix points is exceeding 20m. Install expansion joint according to actually installation.



    Isolating Section:

    Isolating sections are required if parts of the system or individual rails are to be de-energized within a conductor rail system. To prevent a voltage bridging by current collector two air gap isolating sections should be installed.



    Collectors:

    The current collectors are made of carbon brush, re-inforced nylon and galvanized or spray-paint metal material. Spring loaded carbon brushes maintain uniform contact. Connecting cables and hinged or flexible towing arms included. Double Current collectors for transfer applications and higher amperage are available.

    JDC Aluminum / Copper Single Pole Insulated Conductor Rail System 0JDC Aluminum / Copper Single Pole Insulated Conductor Rail System 1

    Technical Parameters

    Model

    Type

    Conductor material

    Cross section(mm²)

    Nominal current (A)

    Leakage-distance (mm)

    Resistance

    Dimensions (H * W)

    Weight(kg)

    JDC-H-100/150

    H19

    Aluminum

    100

    150

    35 or 80

    0.376

    25*19

    0.46

    JDC-H-160/250

    H24

    Aluminum

    160

    250

    45 or 80

    0.203

    32*24

    0.63

    JDC-H-180/300

    H24

    Aluminum

    180

    300

    45 or 80

    0.187

    32*24

    0.71

    JDC-H-230/320

    H32

    Aluminum

    230

    320

    80

    0.153

    42*32

    0.96

    JDC-H-285/500

    H32

    Aluminum

    285

    500

    80

    0.116

    42*32

    1.13

    JDC-H-360/630

    H32

    Aluminum

    360

    630

    80

    0.087

    42*32

    1.38

    JDC-H-420/800

    H32

    Aluminum

    450

    800

    80

    0.067

    42*32

    1.5

    JDC-H-550/1000

    H32

    Aluminum

    550

    1000

    80

    0.058

    42*32

    1.83

    JDC-H-600/1250

    H32

    Aluminum

    600

    1250

    80

    0.046

    42*32

    2.01

    JDC-H-700/1250

    H52

    Aluminum

    700

    1250

    100

    0.043

    66*52

    2.58

    JDC-H-1100/1600

    H52

    Aluminum

    1100

    1600

    100

    0.037

    66*52

    3.65

    JDC-H-1350/2500

    H52

    Aluminum

    1350

    2000

    100

    0.028

    66*52

    4.32

    JDC-H-1600/2500

    H52

    Aluminum

    1600

    2500

    100

    0.018

    66*52

    4.99

    JDC-H-2000/3000

    H52

    Aluminum

    2000

    3000

    100

    0.015

    66*52

    6.07

    JDC-HT-160/600

    H24

    Copper

    160

    500

    45 or 80

    0.112

    32*24

    1.68

    JDC-HT-180/600

    H24

    Copper

    180

    600

    45 or 80

    0.098

    32*24

    1.86

    JDC-HT-200/700

    H24

    Copper

    200

    700

    45 or 80

    0.087

    32*24

    2.04

    JDC-HT-230/800

    H24

    Copper

    230

    800

    45 or 80

    0.076

    32*24

    2.3

    JDC-HT-230/800

    H32

    Copper

    230

    800

    80

    0.067

    42*32

    2.43

    JDC-HT-300/1000

    H32

    Copper

    300

    1000

    80

    0.058

    42*32

    3.05

    JDC-HT-360/1250

    H32

    Copper

    360

    1250

    80

    0.046

    42*32

    3.56

    JDC-HT-450/1600

    H32

    Copper

    450

    1600

    80

    0.039

    42*32

    4.37

    JDC-HT-500/1600

    H52

    Copper

    500

    1600

    100

    0.036

    66*52

    5.12

    JDC-HT-700/2000

    H52

    Copper

    700

    2000

    100

    0.026

    66*52

    6.91

    JDC-HT-850/2500

    H52

    Copper

    850

    2500

    100

    0.018

    66*52

    8.25

    JDC-HT-1000/3000

    H52

    Copper

    1000

    3000

    100

    0.011

    66*52

    9.65

    JDC-HT-1200/3500

    H52

    Copper

    1200

    3500

    100

    0.009

    66*52

    11.42

    JDC-HT-1600/4500

    H52

    Copper

    1600

    4500

    100

    0.008

    66*52

    14.99

    JDC-HT-1800/5000

    H52

    Copper

    1800

    5000

    100

    0.007

    66*52

    16.75







    JDC-H Conductor Rail System

    Conductor Rail Material

    Aluminum

    Copper

    Stainless

    steel

    Type

    H19

    H24

    H32

    H35

    H52

    H19

    H24

    H32

    H52

    H19

    Nominal current at

    150

    250-300

    320-1250

    230-800

    1250-3000

    150-500

    500-800

    800-1600

    1250-5000

    25

    100%DC and 35℃(A)

    DC resistance

    (Ω/km)

    0.376

    0.203-0.187

    0.153-

    0.046

    0.153- 0.067

    0.043- 0.015

    0.376- 0.156

    0.116-

    0.067

    0.067-

    0.039

    0.036-

    0.007

    11.652

    Impedance

    (Ω/km)

    0.381

    0.209-0.195

    0.155-

    0.048

    0.155- 0.069

    0.044-

    0.017

    0.377- 0.158

    0.118-0.

    069

    0.069-

    0.040

    0.038-

    0.008

    11.663

    Distance between each suspension bracket (m)

    1.5

    1.5

    1.8

    1.8

    2

    1.5

    1.5

    1.8

    2

    1.5

    Rail Length/PC (m)

    4.5

    6

    6

    6

    6

    4.5

    6

    6

    6

    4.5

    Housing Length/PC (m)

    4.42

    5.88

    5.83

    5.83

    5.75

    4.42

    5.88

    5.83

    5.75

    4.42

    Max. voltage (v)

    660v

    Dielectric strength (kv/mm)

    30-40

    Travelling speed

    ≤600m/min

    Design and Manufacturing Standard

    GB7251.2-2006

    Expansion joint

    Cannot exceed 200m length

    Flame retardant

    Class B1-no flaming particles, self-extinguishing

    Permissible Ambient temperature

    Standard insulation -30℃- +70℃|High temperature insulation -20℃- +115℃|Low temperature insulation  -40℃- +85℃
