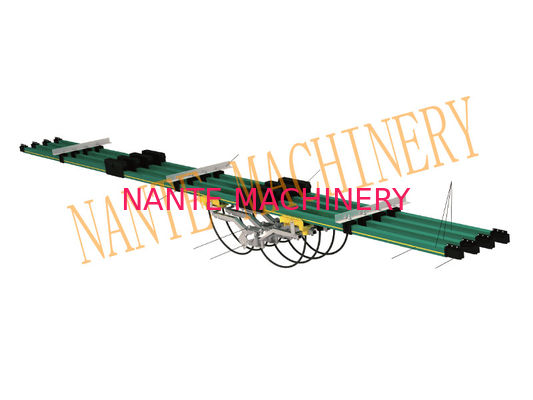

NSP-H32 Conductor Rail System Unipole Insulated Conductor Aluminium & Copper Material Rail

NSP-H32 Conductor Rail System Unipole Insulated Conductor Aluminium & Copper Material Rail

    • NSP-H32 Conductor Rail System Unipole Insulated Conductor Aluminium & Copper Material Rail
    • NSP-H32 Conductor Rail System Unipole Insulated Conductor Aluminium & Copper Material Rail
  • NSP-H32 Conductor Rail System Unipole Insulated Conductor Aluminium & Copper Material Rail

    Product Details:

    Place of Origin: CHINA
    Brand Name: NANTE
    Certification: ISO9001, CE, CCC
    Model Number: NSP-H32

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 Meter
    Packaging Details: Carton
    Delivery Time: 1-2 weeks
    Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability: 1000000 meters per year
    Contact Now
    Detailed Product Description
    Material: Aluminium/Copper Max.current: 1250A
    Max.voltage: 600V Standard Length: 4m, Not More Than 6m
    Max.resistance: 0.153Q/km Max.weight: 2.01kg
    High Light:

    dsl systems

    ,

    crane busbar system


    Specifications
    Insulated Conductors System NSP-H/ Unipole Conductor Rail System /Track Configuration: straight curve elements available.

    Single pole insulated conductor rails offers a large selection for different applications and number of poles.

    Standard application data:
    Max.current(A): 320 - 500 - 630 - 800 - 1000 - 1250
    Max.voltage(V): 600 (hand safe array 500 V)
    Conductor cross section(mm2):230 – 285 – 360 – 450 – 550 - 600
    Outside-Dimensions (Pol) [mm]: 19,0 x 25,0 / 24,0×32,0 / 32,0×42,0 / 38,0×46,0
    Leakage-distance(mm): 80
    Resistance(Ω/km):0.153-0.116-0.087-0.067-0.058-0.046


    Mechanical properties:
    Flexible strength:75N/mm2±10%
    Tensile strength:40N/mm2±10%

    Temperature range:
    Common Housing: -30oC up to +60oC
    BAYBLEND Housing: -20oC up to +115oC

    Combustibility:
    Flame retardant
    Self-extinguishing: class B 1-no flaming paricles,self-extinguishing.

    Standard application data
    Operating Conditions: for indoor and weather protected outdoor applications



    Unipole Conductor Rail system NSP-H Series
    Conductor rail Aluminium Copper
    Type H19 H24 H32 H24 H32
    Nominal current at 100% DC and 35°C [A] 150 250-300 320-1250 500-800 800-1600
    D.C.resistance at 35°C [Q/km] 0.376 0.2030.187 0.1530.046 0.1160.067 0.670.0.39
    Impendance at 35C [Q/km] 0.376 0.2090.195 0.1550.048 0.1180.069 0.0690.04
    Support spacing [m] 1.8 1.5 1.8 1.5 1.8
    Rail length [m] 4/6 4/6 4/6 4/6 4/6
    Housing length [m] 3.88/5.88 3.88/5.88 3.83/5.83 3.88/5.88 3.83/5.83
    Max.voltage [V] 660V Dielectric strength [KV/mm] 30-40
    Travelling speed ≤600 m/min standard GB7251.2-2006
    Expansion joint Only required when total length≥200m
    Flame retardant Class B1-no flaming particles, self-extinguishing
    Permissible ambient temperature Standard insulation -20℃- +70℃
    High temperature insulation -10℃- +115℃


    NSP-H32 Conductor Rail System Unipole Insulated Conductor Aluminium & Copper Material Rail 0
    Aluminium Conductor Rail

    Type Conductor Rail

    Cross section

    (mm2)

    Nominal currens

    (A)

    Leakage-distance

    (mm)

    Resistance

    (Q/km)

    Weight

    (kg/m)

    NSP-H32-230/320 Aluminium 230 320 80 0.153 0.96
    NSP-H32-285/500 Aluminium 285 500 80 0.116 1.13
    NSP-H32-360/630 Aluminium 360 630 80 0.087 1.38
    NSP-H32-420/800 Aluminium 420 800 80 0.067 1.5
    NSP-H32-550/1000 Aluminium 550 1000 80 0.058 1.83
    NSP-H32-600/1250 Aluminium 600 1250 80 0.046 2.01


    Copper Conductor Rail

    Type Conductor Rail

    Cross section

    (mm2)

    Nominal currens

    (A)

    Leakage-distance

    (mm)

    Resistance

    (Q/km)

    Weight

    (kg/m)

    NSP-H32-230/800 Copper 230 800 80 0.067 2.43
    NSP-H32-300/1000 Copper 300 1000 80 0.058 3.05
    NSP-H32-360/1250 Copper 360 1250 80 0.046 3.56
    NSP-H32-450/1600 Copper 450 1600 80 0.039 4.37
