| Place of Origin: | CHINA |
| Brand Name: | NANTE |
| Certification: | ISO |
| Model Number: | NANTE-04 |
| Minimum Order Quantity: | 50m |
|---|---|
| Price: | 3-6usd/pc |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500m/day |
| Model Number:: | 3 Phase, 4 Phase, 6 Phase | Material: | Copper |
|---|---|---|---|
| Type: | Flexible | Rated Current:: | 30A-200A |
| Color: | 6,10,16,25,30,35 Square Mm | Housing Material:: | Pvc |
| High Light: | High Tro Reel,conductor rail system |
||

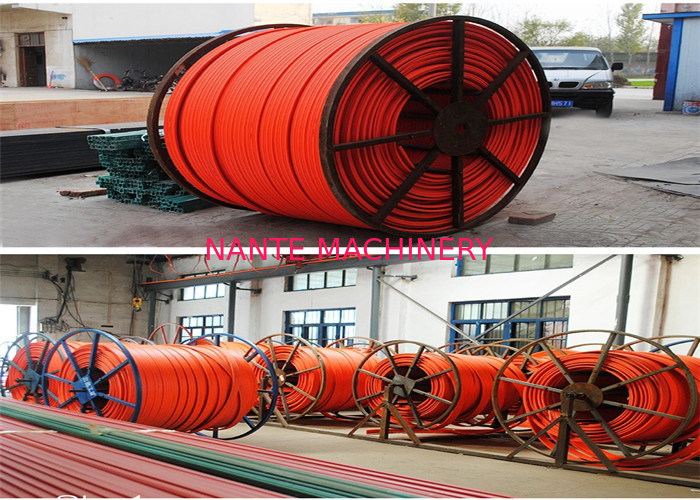

1. The crane conductir busbar is widely used in the crane,hoist fields.
2. The conductor busbar is oxygen-free copper,perfect conductivity,pure quality,well proportioned and bright color.the insulated materials is PVC,adding the speciality of shock-resistance and ultraviolet-resistance,fine,physical property.
3.It has simple structure and easy on installation.
|
POLES
|
Conductor Cross Section (mm2)
|
Max Current (A)
|
|
3
|
3*10mm2
|
50A
|
|
3
|
3*15mm2
|
80A
|
|
3
|
3*20mm2
|
100A
|
|
3
|
3*25mm2
|
120A
|
|
3
|
3*35mm2
|
140A
|
|
4
|
4*10mm2
|
50A
|
|
4
|
3*15mm2+1*10mm2
|
80A
|
|
4
|
3*20mm2+1*10mm2
|
100A
|
|
4
|
3*25mm2+1*12.5mm2
|
120A
|
|
4
|
3*25mm2+1*15mm2
|
140A
|
|
6
|
6*10mm2
|
50A
|
|
6
|
6*15mm2
|
80A
|
Contact Person: Miss. Lexie. Mao
Tel: 86-15158039997 www.nantecrane.com
Fax: 86-575-85255335
