    Product Details:

    Place of Origin: CHINA
    Brand Name: Nante
    Certification: ISO9001, CE, CCC
    Model Number: C Track

    Payment & Shipping Terms:

    Minimum Order Quantity: 100m
    Packaging Details: Naked, Wooden case or Carton
    Delivery Time: Within 14 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1000000 meters per year
    Contact Now
    Detailed Product Description
    Model Number:: C32 Standard Length:: 4m Or 6m
    Travel Speed:: <120m/min Place Of Origin:: China (Mainland)
    Material:: Galvanized Steel Temperature:: -30℃ To +100℃
    Cable Load:: <120kg
    High Light:

    c rail festoon system

    ,

    festoon trolley cable carrier

    Crane Heavy Duty C Track Festoon System Galvanized Steel C32 is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition





    Festoon system support conductor cables(flat or round) and hoses(hydraulic and pneumatic application for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

    The cable trolleys are well guided inside their c-track and protected against humity, dust and icing.





    NANTE cable trolleys not only deliver power and control to mobile equipment which has reciprocal motion but also support large quantities of data cables including optic fibers travelling independently from the mobile machinery. The relevant control carriers with and without push button lifting are also shown in related catalog.




    Specifications

    1. Crane C-Rail Festoon System
    2. Delivering power&control to mobile equipment
    3. Gavanized surface, high strength wheel





    The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

    Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.





    Application

    C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.





    Design features:

    Compact arrangement, corrosion resistance and simple assembly are its essential features.  Easy for transportation and installation





    Technical Parameters

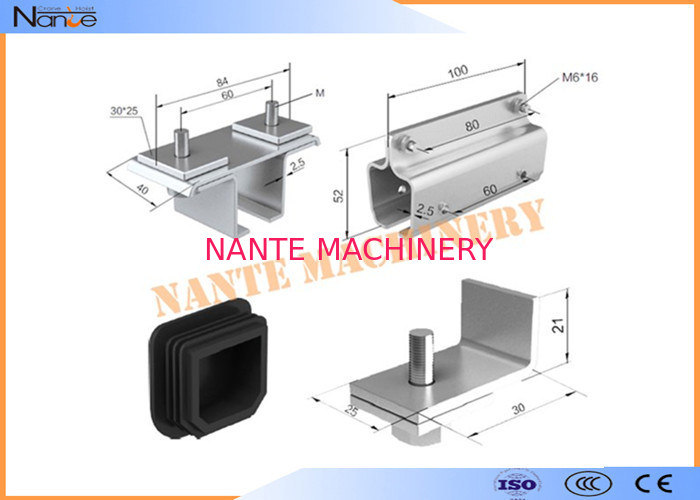

    Professional C Track Festoon System Delivering Power Control To Mobile Equipment 0





    Type

    C32*30*1.5

    C40*40*2.0

    C63*63*4.0

    C30*28*1.5

    Material

    Galvanized steel / Except C63

    Weight kg/m

    1.19

    2.00

    5.98

    1.03

    Technical data

    A

    32

    40

    63

    30

    B

    30

    40

    63

    28

    C

    12

    13

    18

    10

    6

    1.5

    2.0

    4.0

    1.5

    Spacing

     Max. Cable Load

    1.5m

    89kg

    188kg

    503kg

    70kg

    2.0m

    51kg

    103kg

    425kg

    36 kg

    2.5m

    39kg

    73kg

    302kg

    22kg

    3.0m

    23kg

    49kg

    195kg

    -

    4.0m

    -

    28kg

    85kg

    -





    Type

    Towing Trolley

    End Trolley

    Middle Trolley

    Round Cable Trolley

    Wheels

    Ball bearings, hardened, galvanized

    Temperature resistance Lub. grease of wheels: -30°C to +125°C

    Max. travelling speed: 160m/min.

    Ball bearings, hardened, galvanized

    Temperature resistance Lub. grease of wheels: -30°C to +125°C

    Travelling speed: ca 120m/min.

    Material

    Carrier body: steel, galvanized
    Support saddle: steel, galvanized
    Bumper: neoprene
    Dowel: brass
    Hardware: galvanized

    Temperature: resistance: -30°C to +100°C(ABS Saddle 80°C)

    Carrier body: steel, galvanized
    Clamp: steel, galvanized
    Sling: nylon
    Dowel: brass
    Hardware: galvanized

    Max. cable load

    Max. 25kg per carrier

    Max. 25kg per carrier

    Max. 30kg per carrier

    Max.22kg per carrier

    Dim. Of cable (mm)

    Max. 75w×32δ

    Max. 75w×32δ

    Max.75w×32δ

    Max. D=50mm/D=80mm/D=160mm

    Weight (kg)

    0.61

    0.39

    0.415

    0.29
