| Place of Origin: | Zhejiang |
| Brand Name: | NANTE |
| Certification: | CE |
| Model Number: | C32 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | usd3-8pc |
| Packaging Details: | carton |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000pc/year |
| Material: | Plastic | Color: | Yellow Or Black |
|---|---|---|---|
| Type: | C32 | Temperature Resistance: | -30-+100 |
| Dowel: | Galvanized Steel | Speed: | 120m/min |
| High Light: | c rail festoon system,festoon cable systems |
||

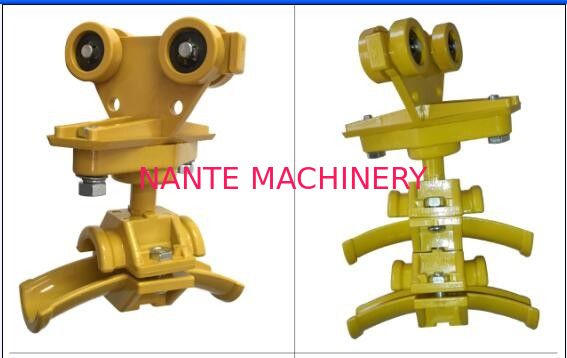

1.Festoon System Anti-explosion Cable Trolley
2.Certification: CCC, ISO, CE
3. For cranes, stacking system
Festoon System Anti-explosion Cable Trolley, C Track and Trolley Cable Holding System, Power Supply Festoon Cable Trolley C32, Festoon Cable Trolley C32, Galvanized Steel Conductor Rails With Brass Dowel , C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.
Detailed Product Description
Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.
The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.
Application
C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.
Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation
Technical Parameters:
| Type | C32*30*1.5 | C40*40*2.0 | C63*63*4.0 | C30*28*1.5 |
| Material | Galvanized steel / Except C63 | |||
| Weight kg/m | 1.19 | 2.00 | 5.98 | 1.03 |
| Technical data | ||||
| A | 32 | 40 | 63 | 30 |
| B | 30 | 40 | 63 | 28 |
| C | 12 | 13 | 18 | 10 |
| 6 | 1.5 | 2.0 | 4.0 | 1.5 |
| Spacing | Max. Cable Load | |||
| 1.5m | 89kg | 188kg | 503kg | 70kg |
| 2.0m | 51kg | 103kg | 425kg | 36 kg |
| 2.5m | 39kg | 73kg | 302kg | 22kg |
| 3.0m | 23kg | 49kg | 195kg | - |
| 4.0m | - | 28kg | 85kg | - |
Contact Person: Miss. Lexie. Mao
Tel: 86-15158039997 www.nantecrane.com
Fax: 86-575-85255335
